Sanan

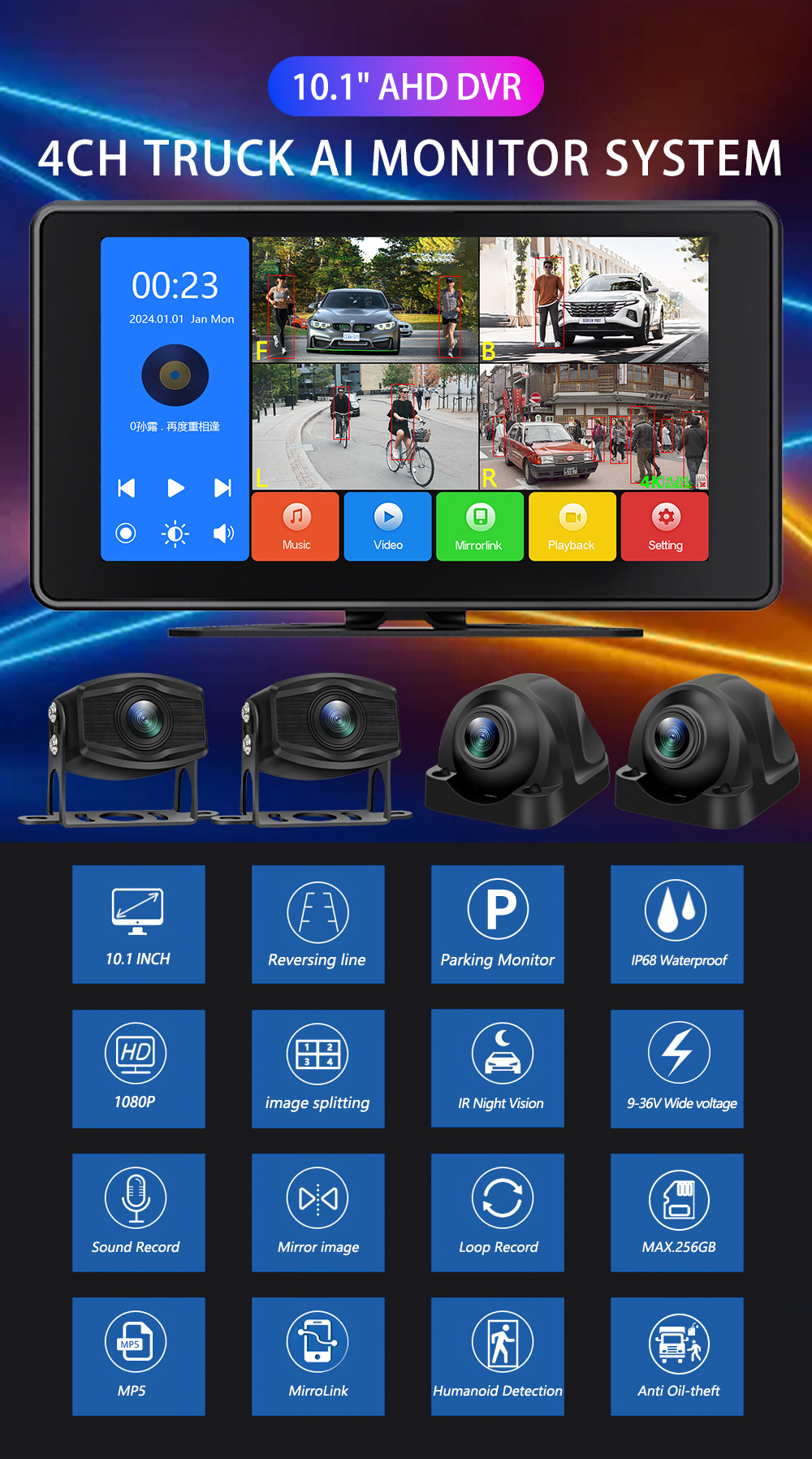

10.1" 4CH Humanoid Detection Vehicle DVR, Touch Screen, MirrorLink
10.1" 4CH Truck/Trailer/Bus Humanoid Detection Vehicle DVR Touch Screen Wired MirrorLink 1080P AHD Reversing Camera Monitor Kit
Model | SA-KC44DH | |
Display | Size | 10.1 inch |
Resolution | 1024*600 | |
Luminescence | 600 Brightness IPS | |
Systems |
|
|
Operating system | Embedded Linux | |
Operating language | Traditional and Simplified (Chinese) English, Russian, Thai, Korean, Vietnamese, Japanese, German, Spanish, French, Turkish, Italian, Portuguese (Bulgarian) | |
Operation interface | Graphic OSD, support keypad/infrared/voice control | |
Sound and video | Route number | 4-way |
Video standard | PAL/NTSC | |
Compression standard | H.264 | |
Image resolution | 1080P/720P | |
Playback resolution | 1280*720 | |
Video format | ts | |
Video frame rate | 30 frames | |
Packing size per minute | 20MB | |
Screen display | Support 1/2/3/4 screen display | |
Horizontal perspective | 120° | |
Noise reduction | 3D | |
Wide dynamic | Digital Wide Dynamic Range (DWDR) | |
Night vision | Starlight full color | |
Sound recordings | The display comes with pickup (need to be manually turned on) | |
Image mirroring | Support | |
SD card storage | 8-128G Class 10 or U1 grade TF card | |
Video mode | Loop video/parking video | |
Loop recording time | 2/3/5 minutes | |
Parking video time | 1/3/5/8/12/24 hours | |
Connector | Video interface | 4-way aviation female access |
USB port | 1 USB port for video and music playback | |
trigger interface | 1-way reverse trigger line/2-way left/right steering trigger line | |
Sound and light alarm interface | / | |
tail line | Integral cable | |
Power Connector | 3-core wire (B+Yellow/ACC Red/B-Black) | |
Extensions | ADAS | / |
BSD | / | |
Pedestrian/oil theft detection | Support | |
MP5 | Support | |
Bluetooth | / | |
FM Launch | / | |
mobile phone connection | / | |
carplay | / | |
WIFI | / | |
Other | Power Input | DC 9-36V |
Operating temperature | -20℃+60℃ | |
