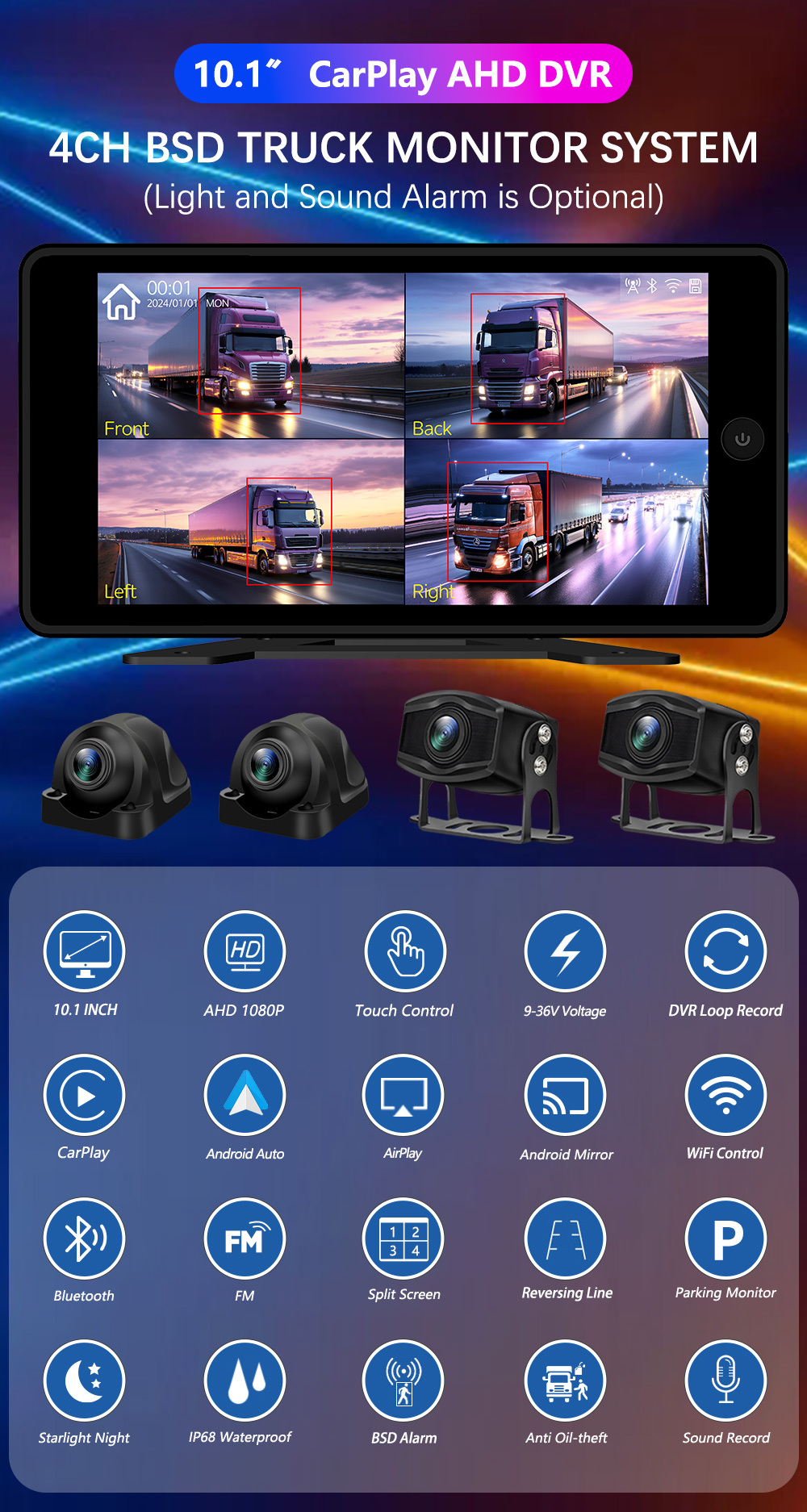

4CH 10.1 Inch CarPlay Android Auto Vehicle DVR System 1080P Camera BSD Alarm Wifi App Control BT Parking Monitor For Truck Bus

Model | SA-KC400X | |
Display | Size | 10.1 inch |
Resolution | 1024*600 | |
Luminance | 600 Brightness IPS | |
Systems |
|
|
Operating system | Embedded linux | |
Operating language | Chinese-English-Korean-Hungarian | |
Operation interface | Graphical OSD with touch support | |
Sound and video | Route number | 4-way |
Video standard | PAL/NTSC | |
Compression standard | H.265 | |
Image resolution | 1080P/720P | |
Playback resolution | 1280*720 | |
Video format | ts | |
Video frame rate | 30 frames | |
Packing size per minute | 12MB | |
Screen display | Support 1/2/3/4 screen display | |
Horizontal perspective | 120° | |
Noise reduction | 3D | |
Wide dynamic | Digital Wide Dynamic DWDR | |
Night vision | Starlight full color | |
Sound recordings | The monitor comes with a pickup (need to be manually turned on) | |
Image mirroring | Support, and support flip | |
SD card storage | 8-128G Class10 or U1 grade TF card | |
Video mode | Loop video/parking video | |
Loop recording time | 1/3/5 minutes | |
Parking video time | 8/12/24/48/Unlimited (hours) | |
Connector | Video interface | 4-channel female air header access |
USB port | / | |
trigger interface | 1 reversing trigger line / 2 left and right steering trigger lines | |
Sound and light alarm interface | 1 way left/right BSD audible/visual alarm port | |
tail line | Integral Cable | |
Power Connector | 3-core wire (B+Yellow/ACC Red/B-Black) | |
Extensions | ADAS | / |
BSD | 2-way BSD | |
Pedestrian/oil theft detection | / | |
MP5 | Support | |
Bluetooth | Support | |
FM Launch | Supported | |
mobile phone connection | Supported | |
carplay | Support | |
WIFI | Support | |
Other | Power Input | DC 9-36V |
Operating temperature | -20℃+60℃ | |
