10.36 Inch 5CH Vehicle DVR Recorder AHD 1080P Camera Monitor System MP5 Touch Screen BSD Alarm Reversing Parking Kit For Truck

stars, based on 0reviews
500items available
Add inquiry cart Inquire Now

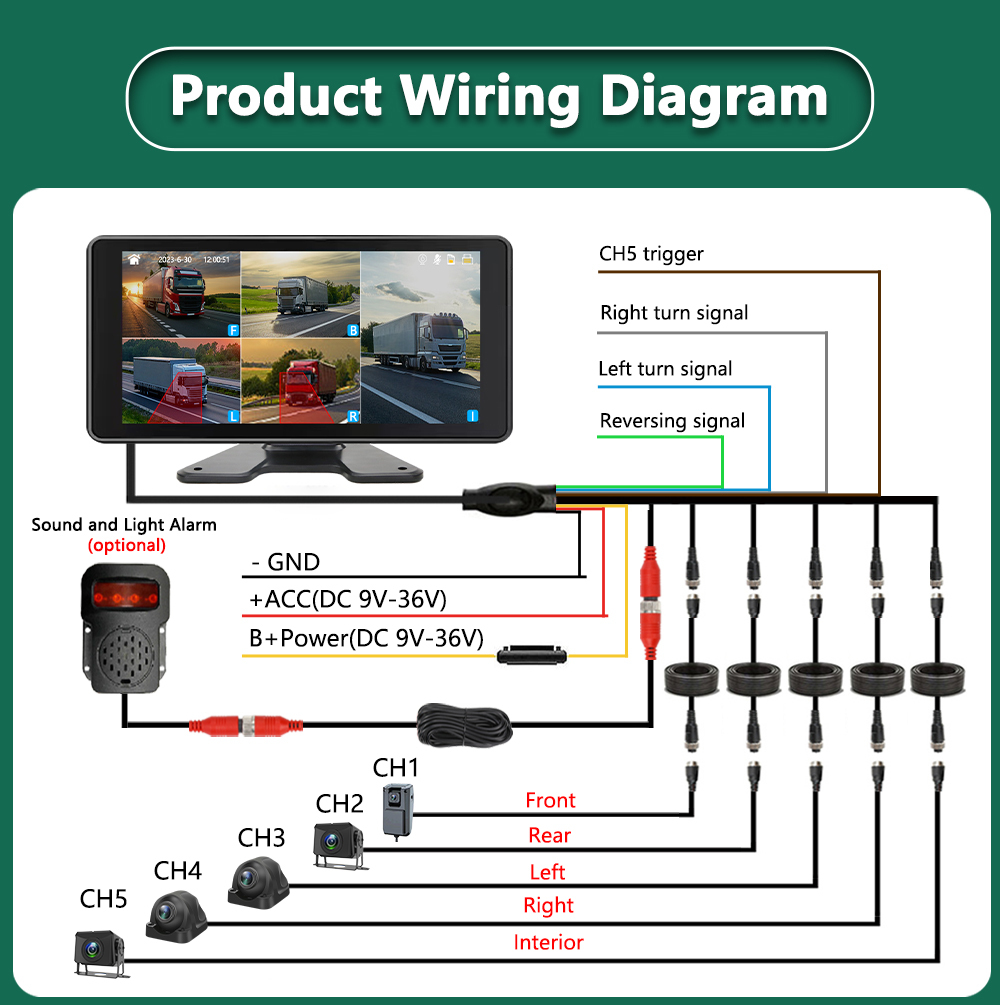

Easy installation of DVR system

Install four AHD cameras in front, rear, left, and right sides of the vehicle; install one sound and light alarm on the left or right side of the vehicle; separately connect them to the monitor. Then connect other cables to their right positions. Finally, you will enjoy a real-time driving monitor, driving assistance, parking monitor and video playback anytime & anywhere. (Note: The sound and light alarm is optional.)

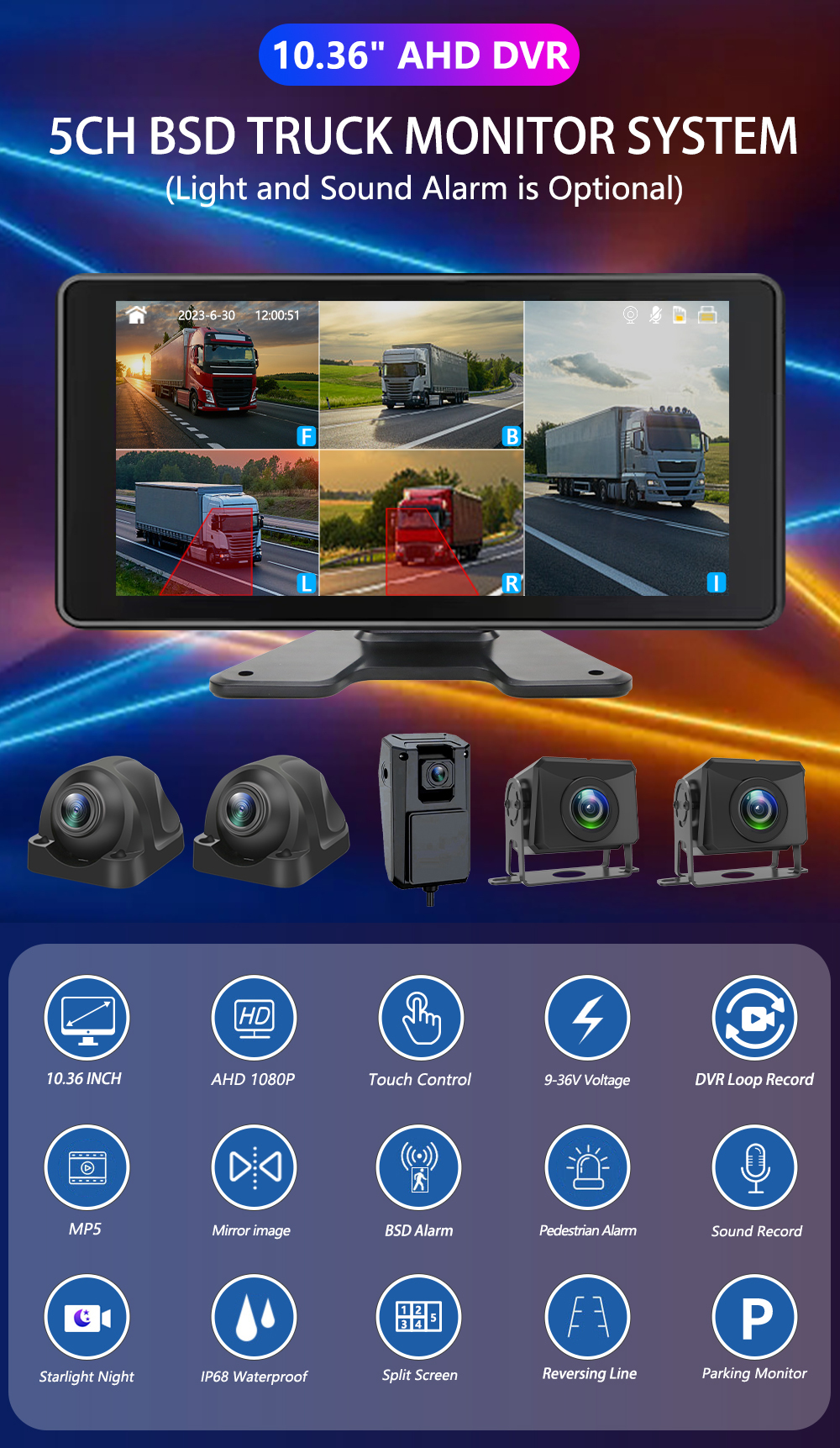

The 10.36-inch 5-channel AHD high-definition vehicle monitoring system is an all-round safety solution designed for commercial vehicles. The main features include:

10.36-inch high-definition touch screen: MP5 player-level display, support touch operation, intuitive and easy-to-use interface

5-channel 1080P AHD camera input: supports simultaneous connection of multiple high-definition cameras to achieve no-dead-angle monitoring

Multi-function safety system: integrated BSD blind spot monitoring and reversing image, effectively improving driving safety

Professional driving recorder: supports multi-channel high-definition synchronous recording to ensure accident evidence collection

Special design for commercial vehicles: especially suitable for large vehicles such as trucks and vans, shockproof and durable

The system significantly reduces the risk of visual blind spots of large vehicles through multi-angle monitoring and intelligent alarm functions, and is an ideal choice for improving the safety performance of commercial vehicles.

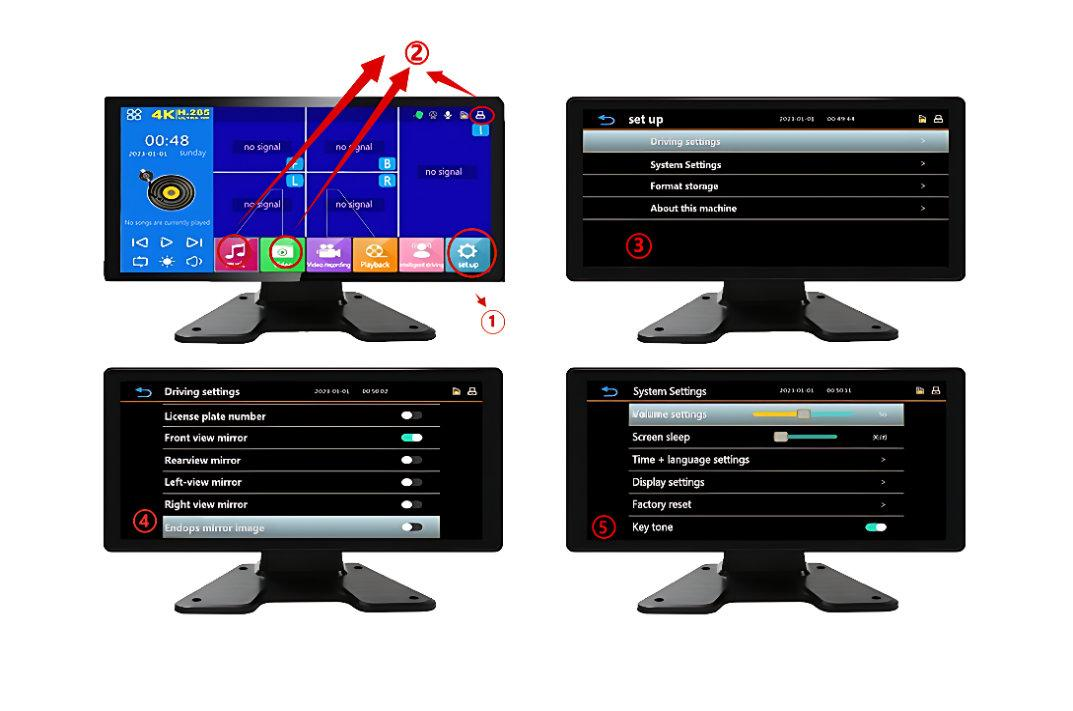

Functional interface

As shown in the figure above
Select ② to play music stored in the USB flash drive
Select ①. Enter the setting function interface, display ③④⑤ (above). Function Menu
Format: Format the TF card.
Language: Select the language of each country.
Date and Time: Set the machine's date and time.
Restore factory settings: Restore the system settings to factory settings.
2.5D touch, operate by finger touch
