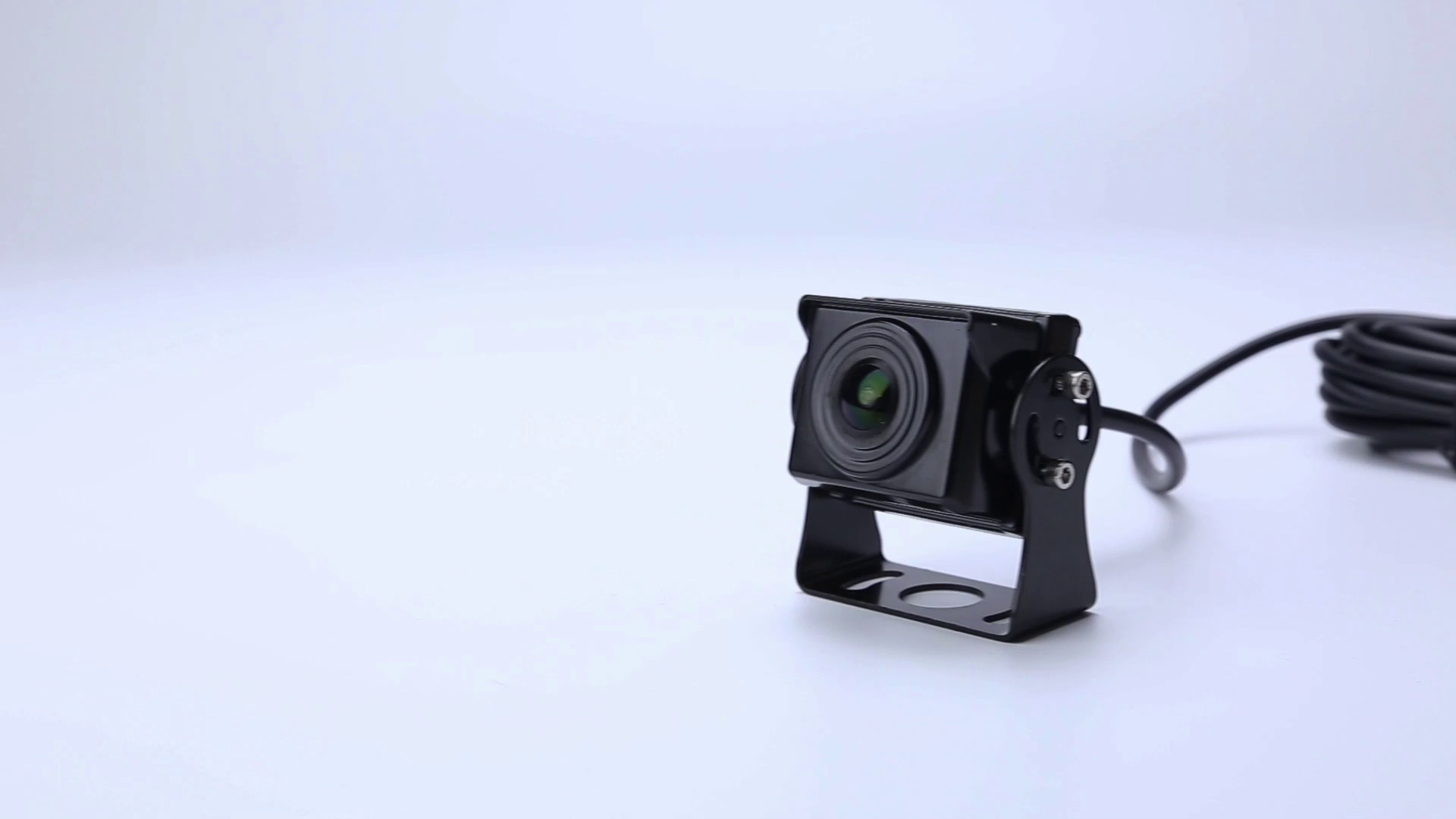

1080P Front View Starlight Night Vision Truck & Bus Camera
Camera Highlight
lAHD Starlight CMB camera;
lHD 2.0M-pixel 1080P
lLens：1.7mm (2 MP, M12 ports)
lStarlight Day & Night Full Color.
lIP68（Out-of-car use）;
Product Description
camera feature
Ø2 million progressive scan CMOS for jagged-free motion image capture;
ØSupport AHD coaxial high-definition output for clear and delicate images;
ØIllumination, 0.01 Lux@(F1.2, AGC ON), 0.001 Lux with IR;
ØAnti-fog shock and low-power design can meet vehicle environment and transient currents;
ØHousing made of aluminium alloy, IP68 waterproof;
ØCamera tail cable default aviation interface, optional AV interface;
Camera parameter
Model NO. | SA-MA20M09 |
Camera | |
Image Sensor | 1/2.8" CMOS Sensor |
Minimum Illumination | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR |
Image Resolution | 2MP 1080P |
Effective Pixels | 1080P@25fps / 1080P@30fps |
TV System | PAL/NTSC |
Infrared Luminary | / |
Focal Length: | 1.7 mm (default)/2.1 mm lens Optional (2 mp, M12 ports); |
S/N Ratio | ≥50dB |
Camera Features | |
Starlight | Starlight Day & Night Full Color. |
Day/Night | YES |
White Balance | AUTO / MANUAL |
Gain Control | AUTO |
Noise Reduction | DNR |
DWDR | YES |
General | |
Housing | aluminium alloy, IP68 |
Audio | / |
Working Temperature & humidity | -20℃ ~ +70℃ RH95% Max |
Power Source | DC12V/0.25A(±10%); |
Dimension | 53*56*36mm |
Weight | 200g |
