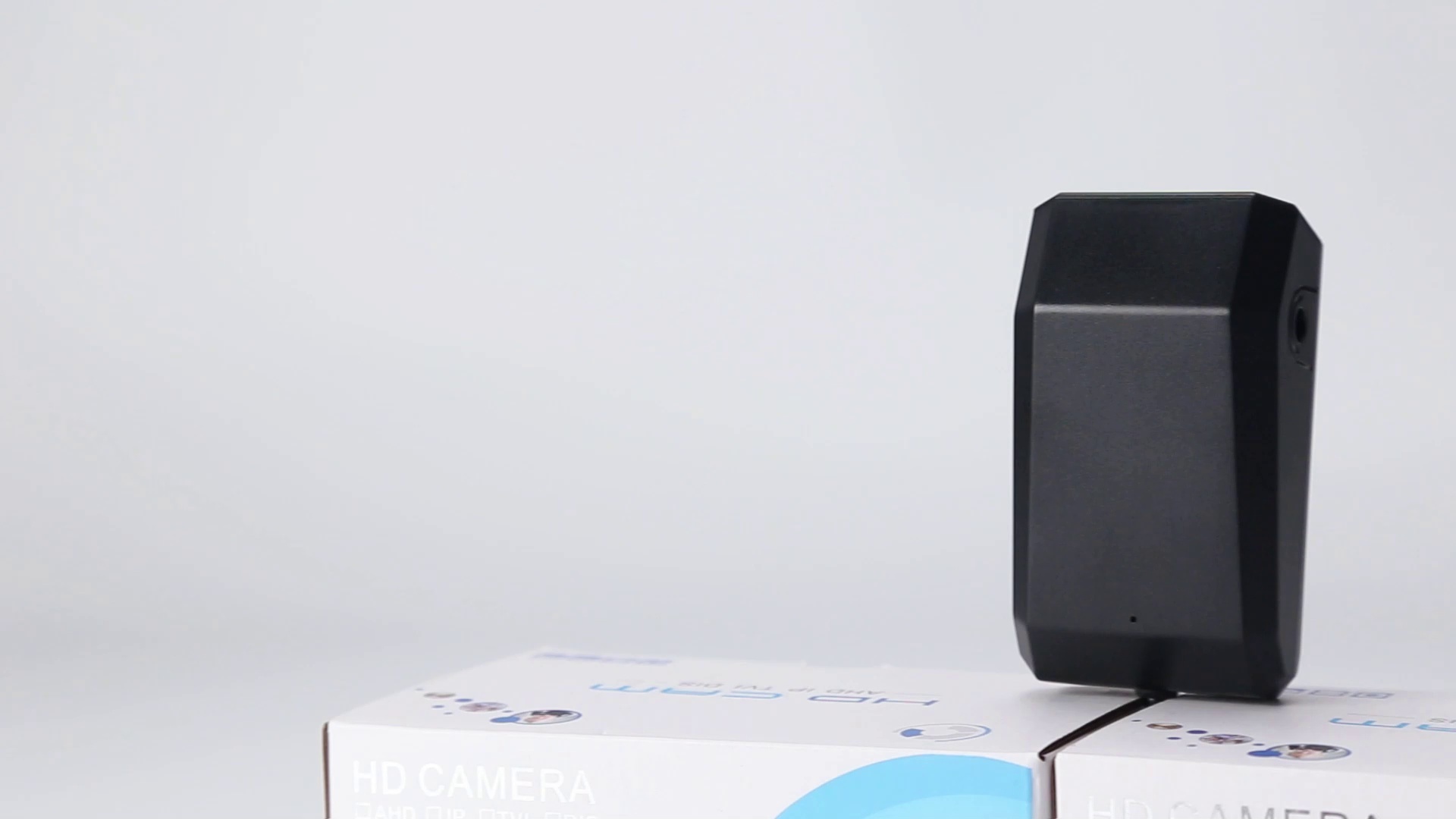

1080P AHD ADAS Camera for Vehicle with Road Warning Function
Camera Highlight
lAHD Infrared Camera;
lDetection of car forward road warning function (with AI MDVR)
lHD 2.0M-pixel 1080P
lLens：3.6mm (2 MP, M12 ports)
lIP65（In Car use）;
Product Description
Camera Feature
Ø2 million progressive scan CMOS for jagged-free motion image capture;
ØSupport AHD coaxial high-definition output for clear and delicate images;
ØDetection of vehicle forward road warning function (with AI MDVR)
ØAnti-fog shock and low-power design can meet vehicle environment and transient currents;
ØHousing made of aluminium alloy, IP65 waterproof;
ØCamera tail cable default aviation interface, optional AV interface;
Camera Parameter
Model NO. | SA-MA20P01 |
Camera | |
Image Sensor | 1/2.9" CMOS Sensor |
Minimum Illumination | 0.01Lux@(F1.2,AGC ON)，0LUX with IR |
Image Resolution | 2MP 1080P |
Effective Pixels | 1080P@25fps / 1080P@30fps |
TV System | PAL/NTSC |
Focal Length: | 3.6 mm (Default); |
S/N Ratio | ≥50dB |
Camera Features | |
Starlight | support |
Day/Night | YES |
White Balance | AUTO / MANUAL |
Gain Control | AUTO |
Noise Reduction | DNR |
DWDR | YES |
General | |
Housing | ABS Plastic, IP65 |
Audio | / |
Working Temperature & humidity | ‐20℃ ~ +60℃ RH95% Max |
Power Source | DC12V/0.25A(±10%); |
Dimension | 58*102.6*44.5mm |
Weight | 250g |
