Sanan

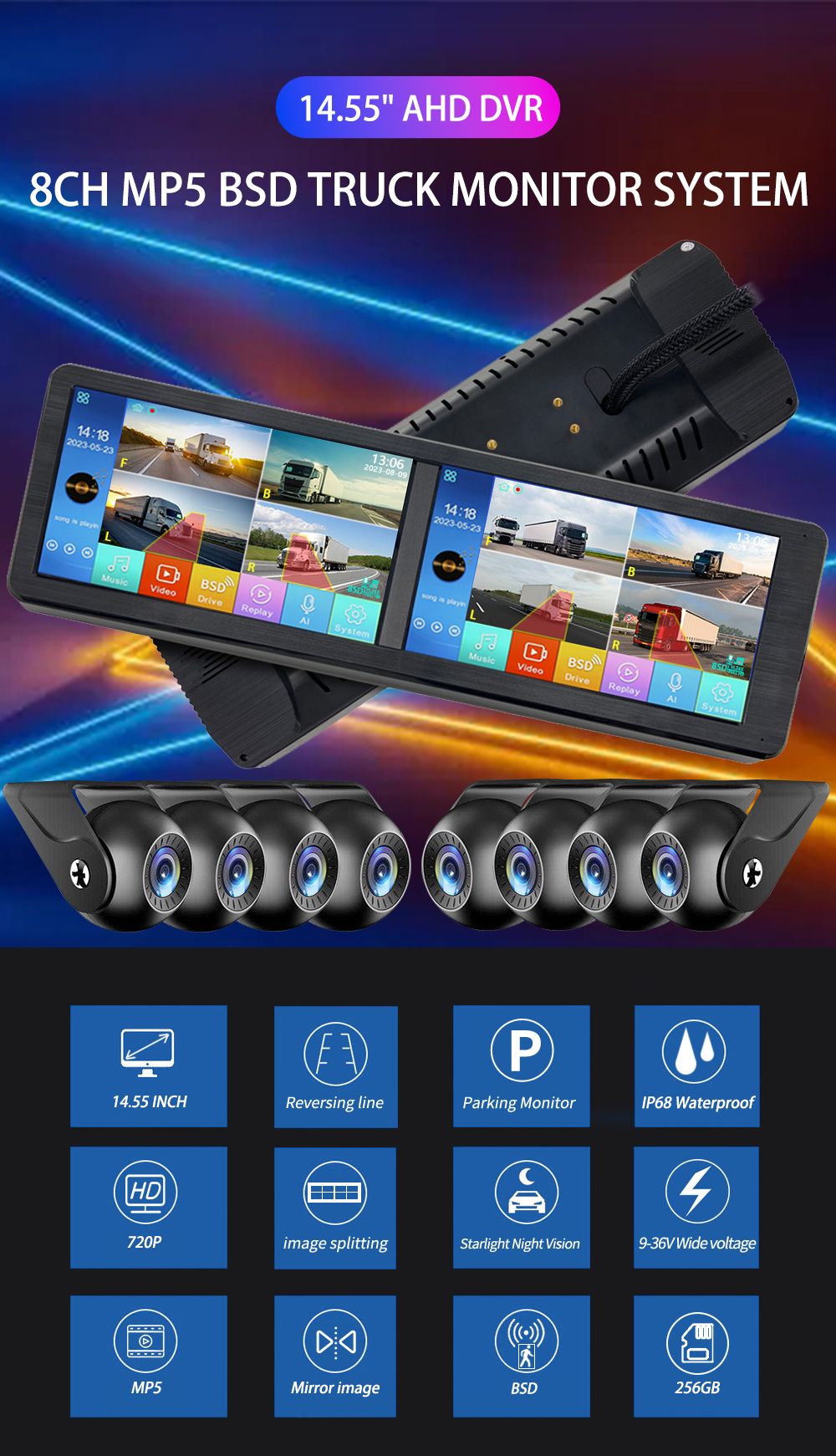

14.55" 8CH AHD Bus Monitor Kit with Night Vision and BSD Alarm
AHD Vehicle Monitor System Vehicle Monitoring System
Model | SA-KC580F | |
Display | Size | 14.55 inch |
Resolution | 1024*600 | |
Luminescence | 600 Brightness IPS | |
Systems |
|
|
Operating system | Embedded linux | |
Operating language | Chinese, English, Japanese, Korean, Russian | |
Operation interface | Graphical OSD, support touch/voice control | |
Sound and video | Route number | 8 channels |
Video standard | PAL/NTSC | |
Compression standard | H.264 | |
Image resolution | 720P | |
Playback resolution | 640*360 | |
Video format | ts | |
Video frame rate | 30 frames | |
Packing size per minute | 7.2MB (1 channel) | |
Screen display | Support 1/4 screen display | |
Horizontal perspective | 120° (1 channel) | |
Noise reduction | 3D | |
Wide dynamic | Digital Wide Dynamic Range (DWDR) | |
Night vision | Starlight full color | |
Sound recordings | The display comes with pickup (need to be manually turned on) | |
Image mirroring | Support | |
SD card storage | 16-128G Class 10 or U1 grade TF card | |
Video mode | Loop Recording/Parking Recording | |
Loop recording time | 1/2 minute | |
Parking video time | 1/12/24 (hours) | |
Connector | Video interface | 8-way aviation female access |
USB port | 2 pairs of 1 USB ports to play video and music | |
trigger interface | 2 pairs of 1-way reverse trigger lines/3-way left/right steering trigger line | |
Sound and light alarm interface | 2 pairs of 1-way left and right BSD audible and visual alarm port | |
tail line | Integral cable | |
Power Connector | 2 pairs of 3-core wires (B+Yellow/ACC Red/B-Black) | |
Extensions | ADAS | / |
BSD | 2 pairs of 2-way BSD | |
Pedestrian/oil theft detection | Support | |
MP5 | Support | |
Bluetooth | / | |
FM Launch | / | |
mobile phone connection | / | |
carplay | / | |
WIFI | / | |
Other | Power Input | DC 9-36V |
Operating temperature | -20℃+60℃ | |
