16.55 inch Heavy Duty Truck Digital Mirror Monitor - Sony Sensor/1080P/BSD Blind Spot Detection/Dual Recording

16.55" Strong Light Suppression Digital BSD Dashcam Auto2CH DVR Voice Alert Sony 1080P Bus Truck Virtual Rearview Mirror Camera

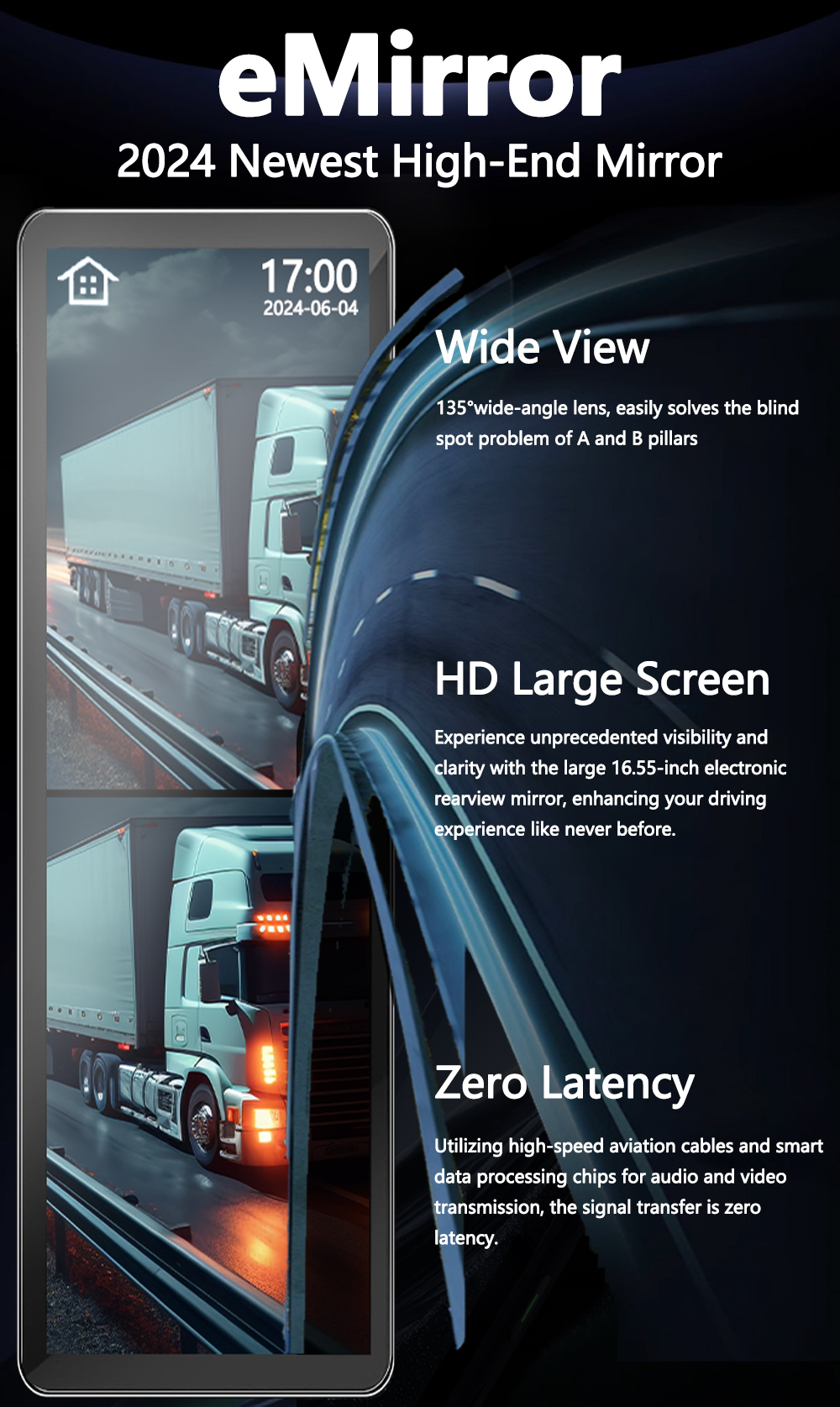

Why Choose an Electronic Rearview Mirror?

The electronic rearview mirror system integrates the functions of vehicle DVR, camera monitoring, and BSD alarm. It supports a larger viewing angle and higher night vision sensitivity and is easier to adapt to complex weather conditions, which means broader and clearer side vision and more professional safeguarding of driving safety than traditional rearview mirrors.

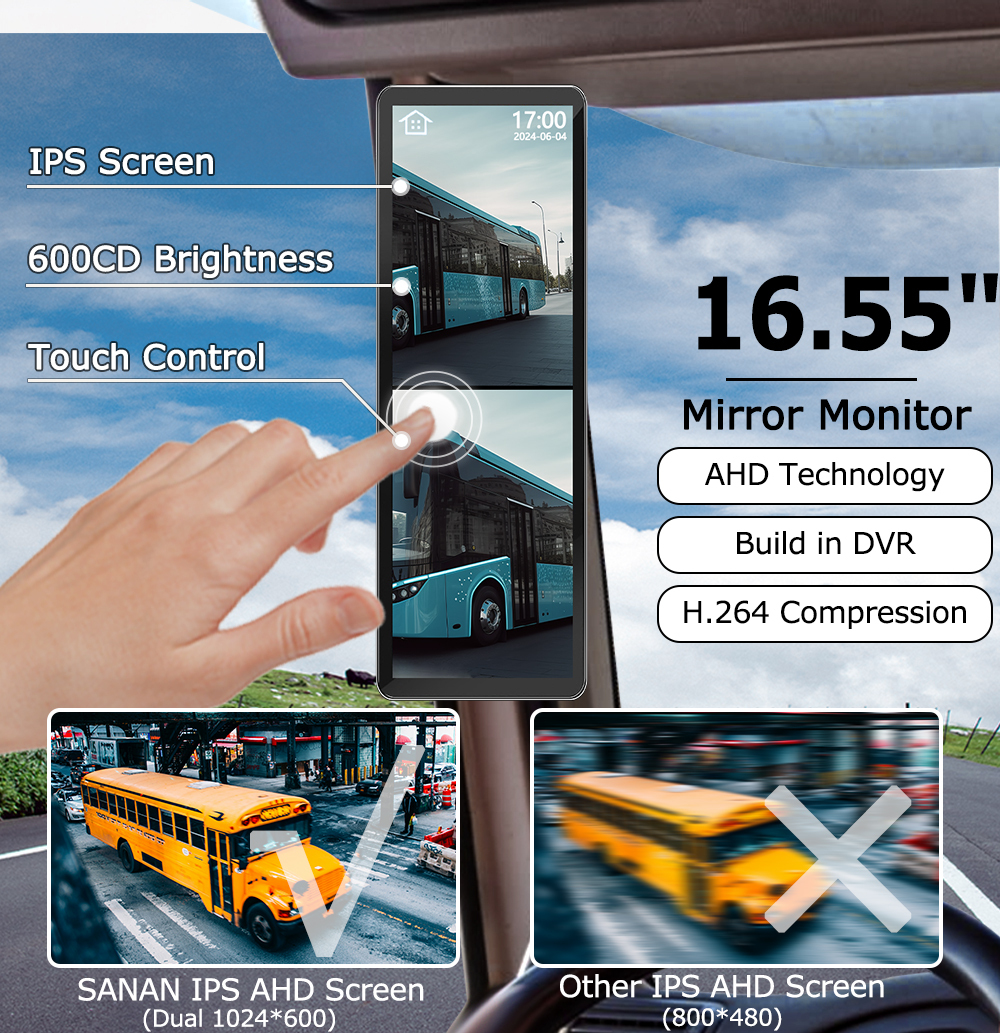

16.55-inch Super Large IPS Touch Screen

The mirror monitor adopts high-end piano paint material and a super large 16.55-inch HD IPS screen, excellent 178° full-view display technology, 1024x600 resolution, and 600CD brightness, which is more excellent than other kinds of monitors in color accuracy and screen consistency. Touch operation, making menu settings more convenient and faster.

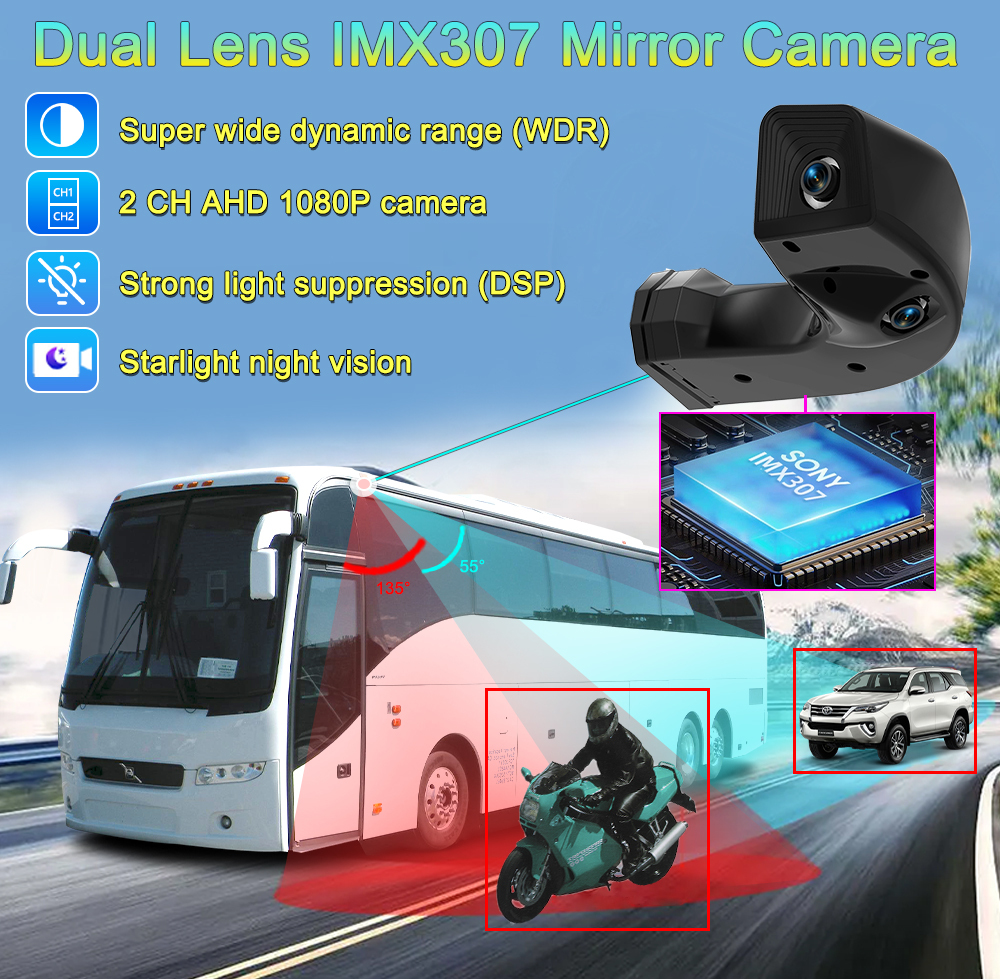

Sony IMX307 Dual-lens 1080P Camera

Our camera adopts dual Sony IMX307 lenses with photosensitive chips; one lens is designed for 135° side front viewing to solve the blind spots problem of the A-pillar, side down, and side front of large vehicles, and another lens is designed for 55° side rear viewing. The camera resolution is up to 1920*1080P; equipped with Sony's CMOS, the image is clearer than other 1080P cameras on the market.

ISP Image Quality Enhancement Algorithm

The self-developed ISP image quality enhancement technology provides perfect image performance, with image fineness and color rendering improved by 120% compared to ordinary cameras.

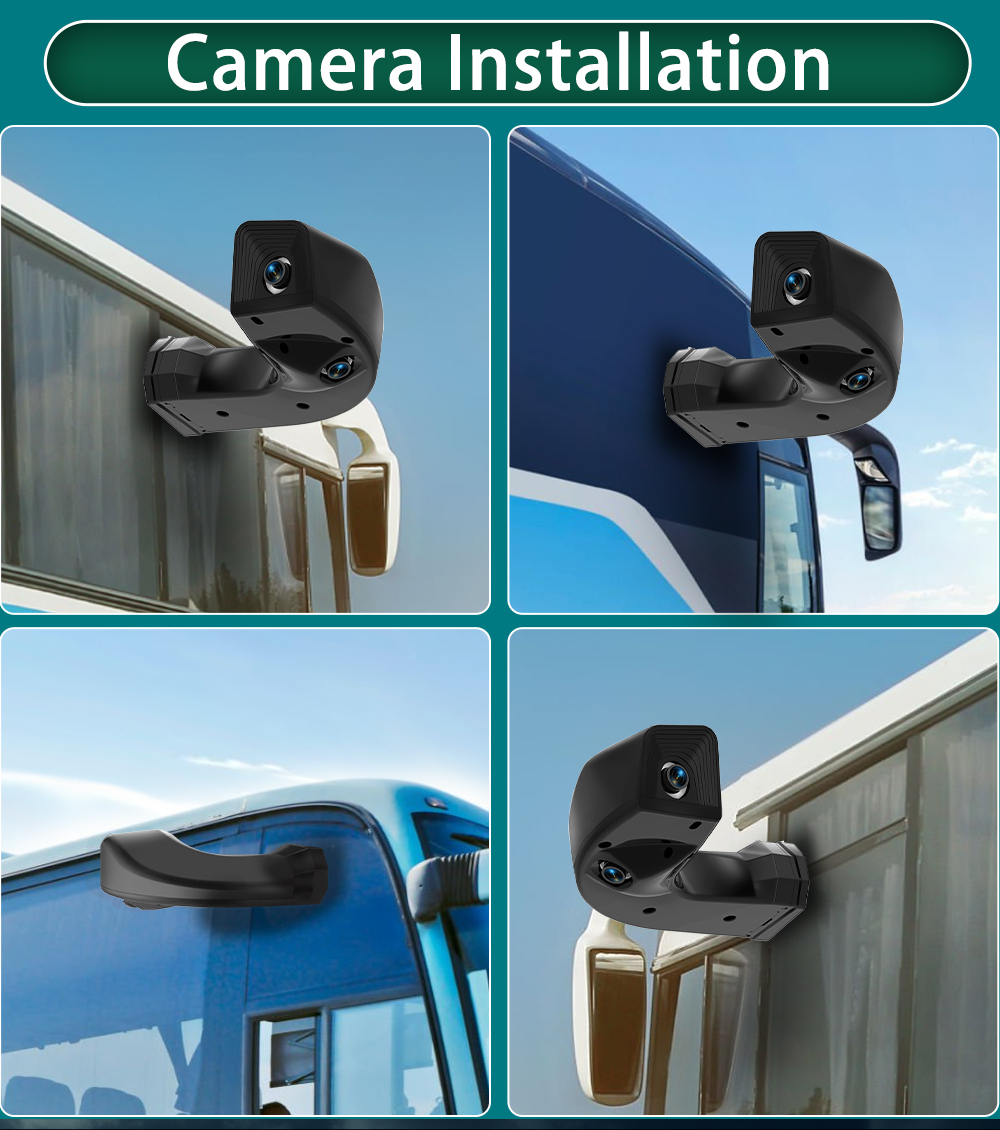

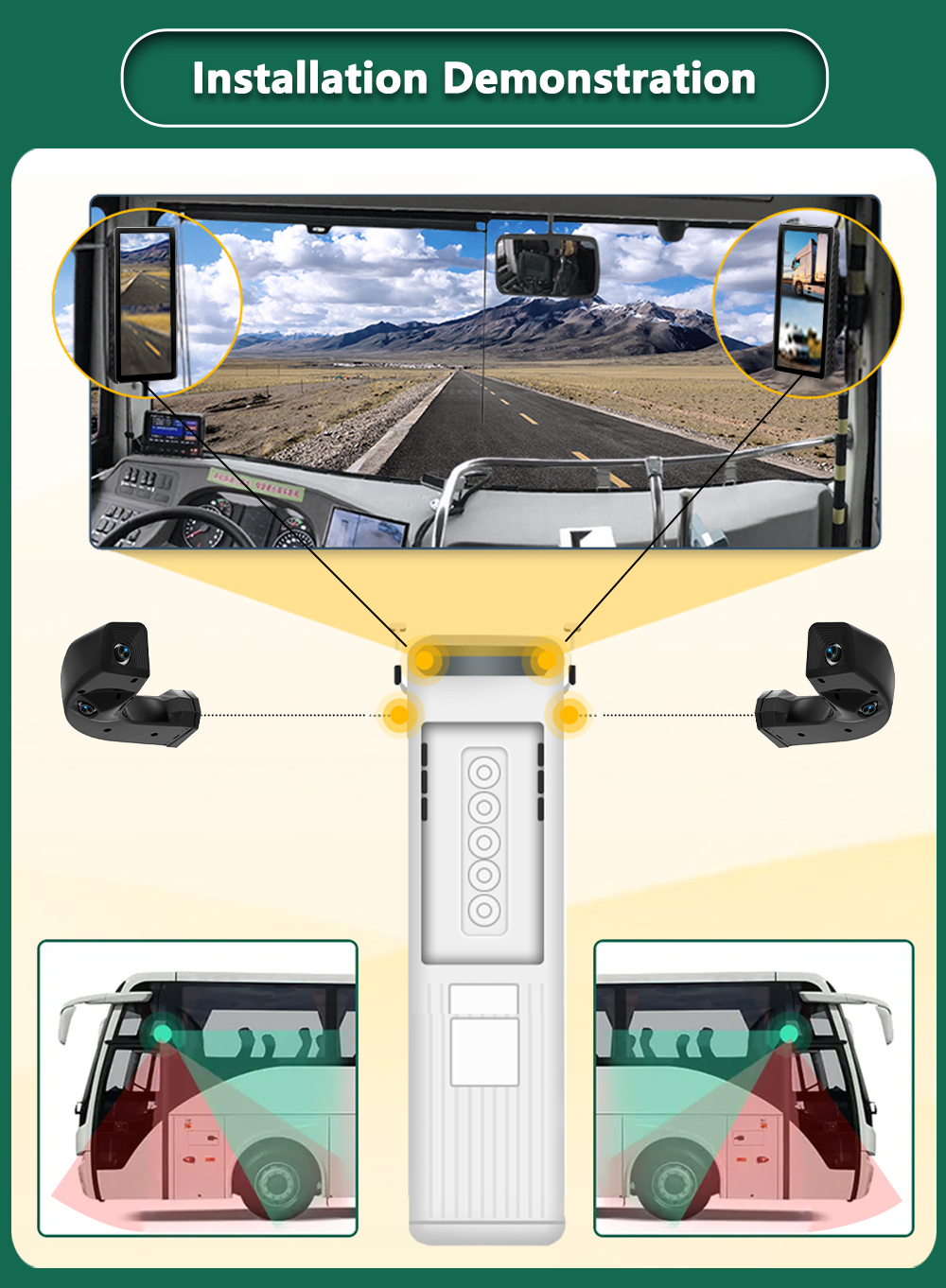

Easy installation of DVR system

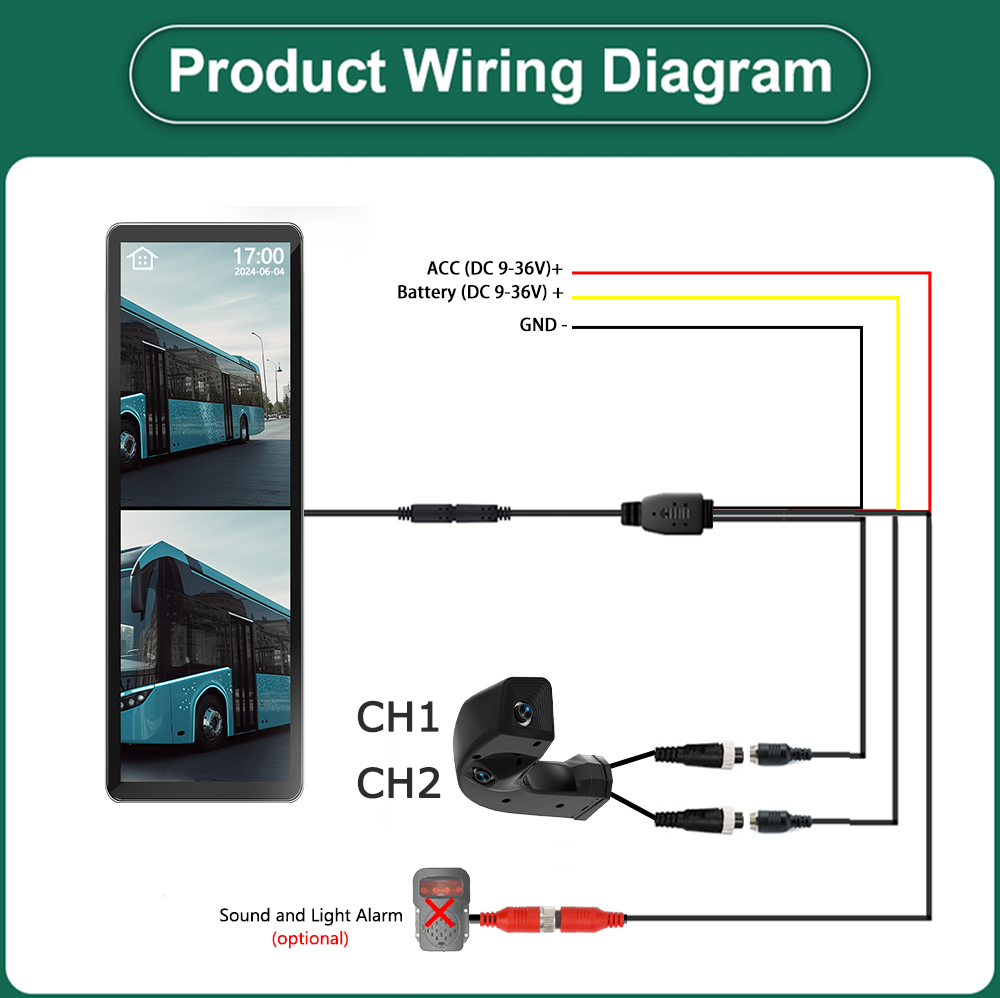

DVR Kit Connection Reference:
1. Connect the red line to the positive pole (+) of the ACC power.
2. Connect the yellow line to the positive pole (+) of the vehicle battery.
3. Connect the black line to the negative pole (-) of the vehicle battery.
4. Connect CH1 to the side rear lens.
5. Connect CH2 to the side front lens.
6. Connect the red 4-pin connector to the speaker alarm. (The speaker is not included.)

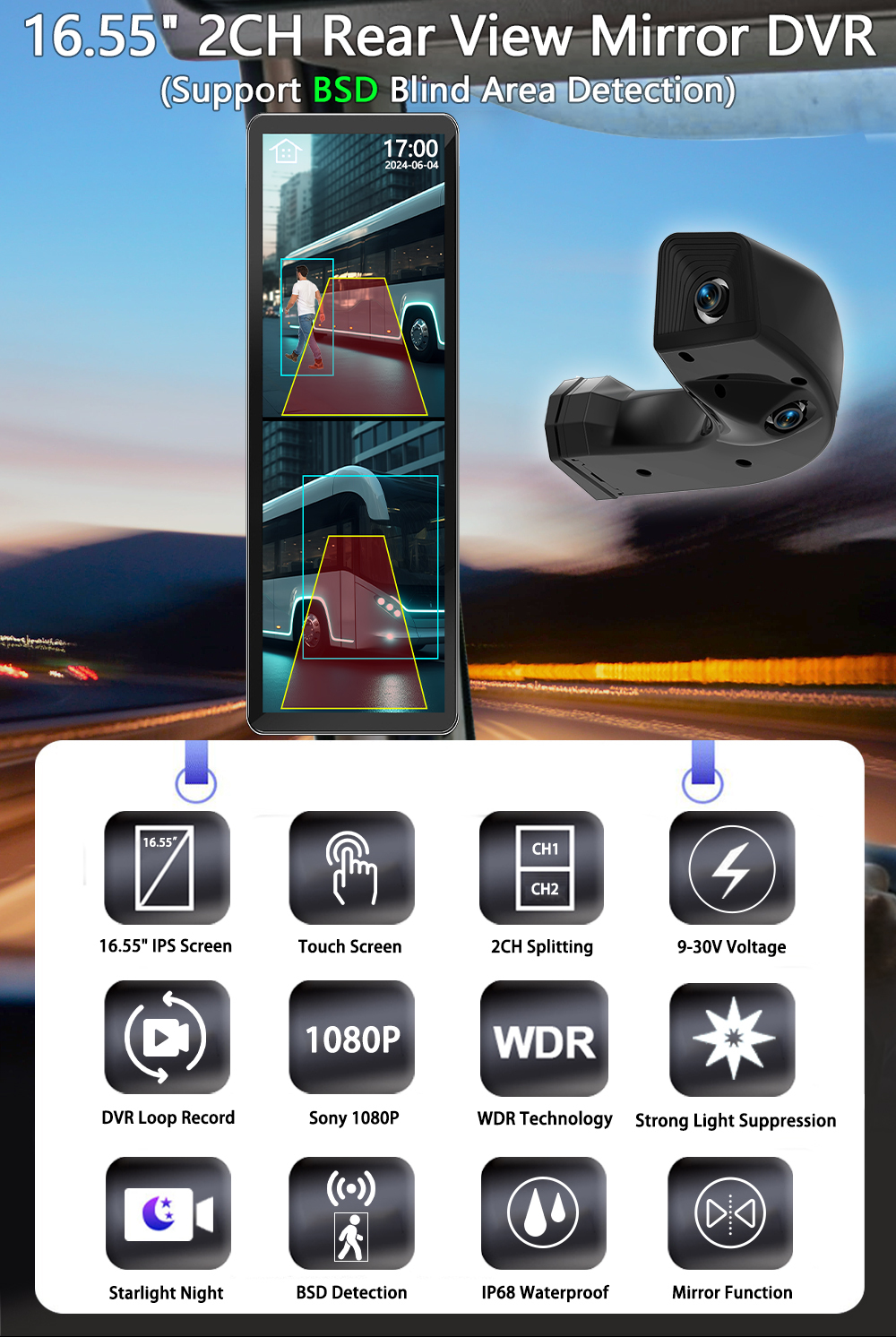

2-Channel BSD Blind Spot Detection

All 2 channels support BSD blind zone warning. During driving or reversing, the cameras can detect dangerous moving objects around the vehicle through a unique AI algorithm and display them on the screen to warn the driver to drive safely. You can configure the BSD alarm system according to your own needs. The BSD voice alert is in Korean, Chinese, or Japanese, which also can be set.
