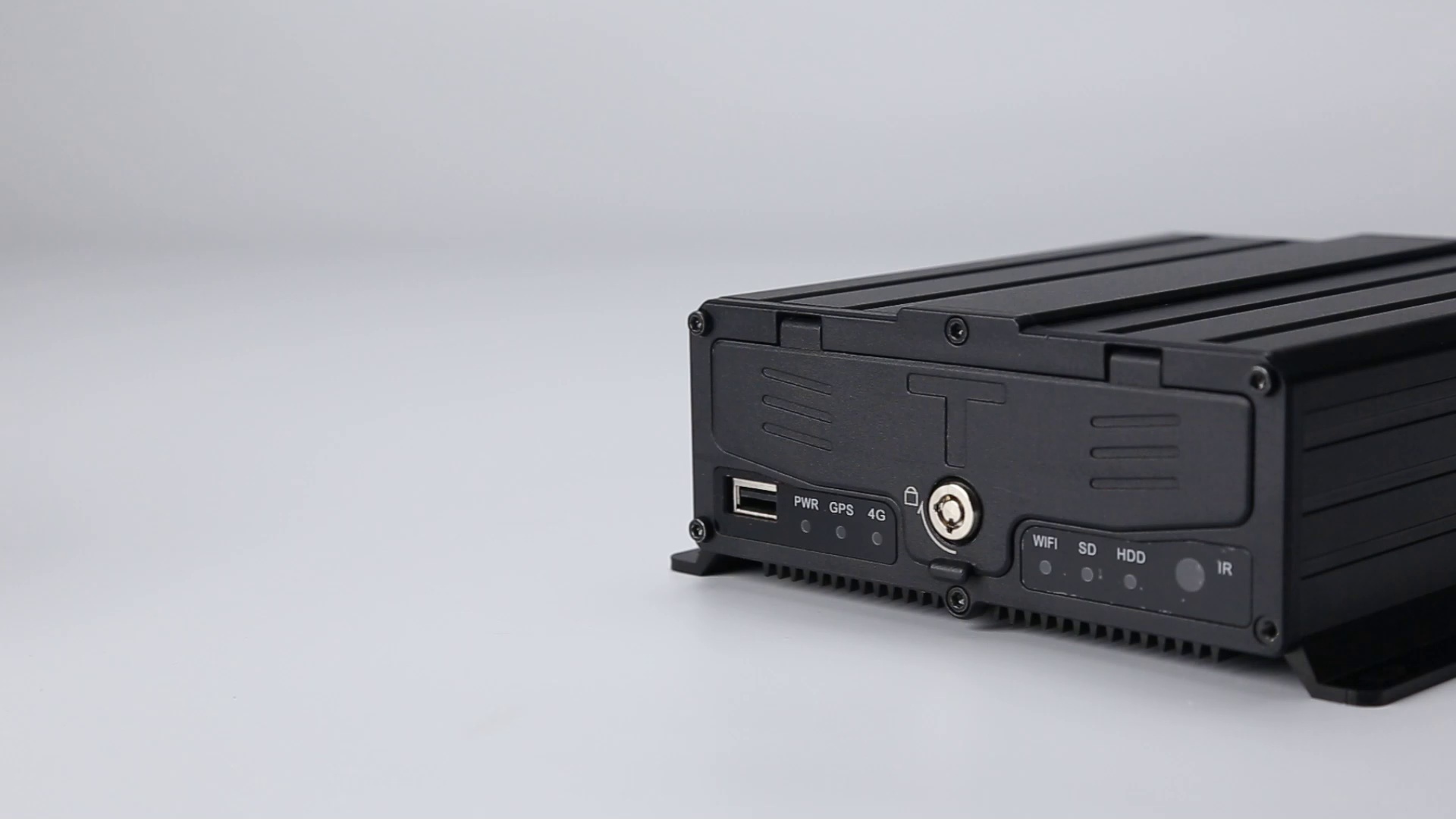

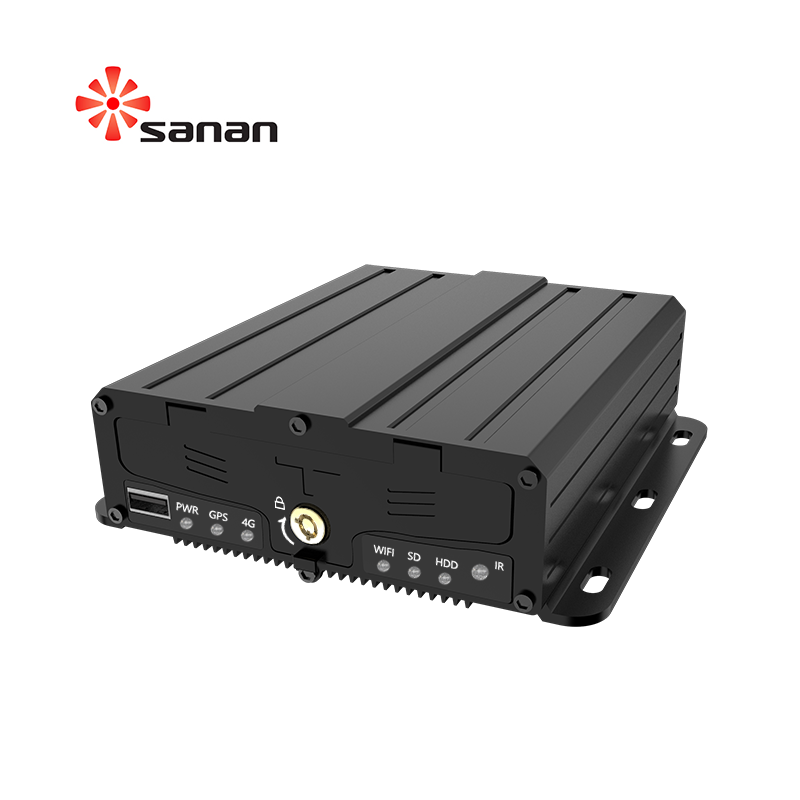

4-Channel 1080P Vehicle-mounted Hard Disk Recorder
The device is an intelligent terminal product integrating GPS/BeiDou positioning monitoring, local SD card video recording, 4G remote real-time video monitoring, IP voice, DMS/ADAS/BSD, and other advanced functions. It integrates the functions of real-time monitoring, production operation management, command, and dispatch. It is a cost-effective and scalable device specially developed for vehicle video monitoring and remote monitoring. The device is an intelligent terminal product integrating GPS/BeiDou positioning monitoring, local SD card video recording, 4G remote real-time video monitoring, IP voice, DMS/ADAS/BSD, and other advanced functions. It integrates the functions of real-time monitoring, production operation management, command, and dispatch. It is a cost-effective and scalable device specially developed for vehicle video monitoring and remote monitoring.
Function description
1. 4-channel recorder, supports mixed use of 1080P, 720P, and standard definition cameras;
2. 1-channel IPC input;
3. Support SD card, maximum 512G; support hard disk, maximum 4T;
4. 4G (Cat. 4) full network module; optional 5G;
5. Support WIFI, support STA and AP modes optional;
6. Built-in GPS/Beidou dual-mode positioning module;
7. Support 6-channel alarm input and 2-channel alarm output;
8. Support CVBS, VGA video output
9. Support network monitoring platform, optional protocols 808/1078, TTX, etc.;
10. 【Optional】Support DMS, ADAS, BSD, and 360 stitching algorithm;
Type | Technical Specifications | |||
4 Channel | 8 Channel | |||
System | language | Chinese / English | ||
Operating system | Linux | |||
Operation interface | Graphical menu operation interface (OSD menu), character overlay function. | |||
GUI | Support mouse and remote control operation to set system parameters | |||
CPU | CPU | ARM Cortex CA9 Binuclear@1.4GHz | ||
Memory | 4GB DDR4 | |||
Video recording system | Video input | 4CH CVBS，1.0Vp-p, 75Ω | 8CH CVBS，1.0Vp-p, 75Ω | |
Support camera resolution: 1080P,720P,D1 | ||||
Video output | 1CH VGA,1CH CVBS, Support full screen and 4/9 channel segmentation | |||
Video format | PAL /NTSC | |||
Video compression | H.264/H.265 | |||
Preview function | Support full screen and 4 / 9 channel split preview, support manual / event triggered full screen display function | |||
Video Resolution | Support 1080P、720P、D1、HD1、 CIF optional, the total encoding resource is 1080p 150 frames | |||
Video quality | Level 1 to 8, best level 1, lowest level 8 | |||
Video rate | PAL: 100FPS/s , CCIR625 line,50 games NTSC: 120FPS/s, CCIR525 line,60 games CIF: 256Kbps ~ 1.5Mbps, Multi level image quality HD1: 600Kbps ~ 2.5Mbps, Multi level image quality D1: 800Kbps ~ 3Mbps, Multi level image quality 720P: 1Mbps-4Mbps, Multi level image quality 1080P: 1Mbps~8Mbps, Multi level image quality | |||
Recorder mode | Default automatic recording, support ignition recording, alarm recording | |||
Audio | Audio input | 4-channel analog audio | 8-channel analog audio | |
Audio output | 1 channel, built-in power amplifier, optional built-in and external | |||
Audio compression | G.711A | |||
Recording mode | Simultaneous recording of sound and video | |||
Alarm input | 6-way switch input | |||
Alarm output | 1-way output, linkage sound and light alarm, oil and power cut.etc | |||
Communication interface | 1 USB interface | |||
1 CH RS232 interface, expandable card reader, oil sensor. etc | ||||
1 CH RS485 interface, expandable PTZ | ||||
1 10m/100M adaptive network interface, Support TCP/IP,FTP,DDNS protocol | ||||
Extension interface | 1 CH voice intercom interface, which can be connected to the call handle | |||
Multi function control panel can be connected (support 12V output and RS232 communication) | ||||
Wireless transmission | Optional 4G function, TDD-LTE, FDD-LTE | |||
WIFI: 802.11b/g/n Wireless communication module | ||||
GPS location | Optional GPS / BD module | |||
Sensor | Built in 3-axis acceleration and 3-axis gyroscope sensor | |||
Disk | HD | Built in hard disk with SATA interface, supporting up to 4T | ||
SD card | 1 SD card video, maximum support 512g, can support synchronous sub stream video | |||
Upgrade mode | Support u disk upgrade, SD card upgrade, FTP remote automatic upgrade | |||
Storage mode | Proprietary bare disk storage mode | |||
USB | Front USB interface, can use U disk to upgrade backup data, support USB mouse | |||
SIM card | 1 SIM card interface | |||
Playback | Video search | Search for videos by recording time, recording method,etc | ||
Playback | Support 4CH synchronous playback, support 2/4/8/16x fast forward or backward | Support 8CH synchronous playback, support 2/4/8/16x fast forward or backward | ||
AI algorithm | ADAS | Lane departure detection, pedestrian detection, vehicle distance detection | ||
DSM | Fatigue driving test and unsafe driving behavior test | |||
BSD | Left blind area, right blind area detection | |||
360 | 360 surround view | |||
APC | Cooperate with passenger flow cameras | |||
Power supply and power consumption | Power | Adaptive wide power input, with overload, undervoltage, short circuit, reverse connection and other protection functions; Support timing switch, delay shutdown function. | ||
Input voltage | DC:+9V ~ +36V | |||
Output voltage | +12V@1A，+5V@1A | |||
Power waste | ＜8W（Without peripherals） | |||
work environment | Temperature | -10℃ to +70℃ | ||
Humidity | 20% to 80% | |||
Security management | Two level management of user password and administrator password | |||
Platform access | JT/T808-2011, JT/T808-2019 | |||
JT/T1076-2016, JT/T1078-2016 | ||||
TTX Private agreement、GB28181、RTMP Optional | ||||
Appearance size | 195mm*183mm*60mm | |||
Net weight | 1.6kg | |||
