10.36" 4CH Truck/Bus Monitor Wired MirrorLink 1080P Touch Screen DVR System

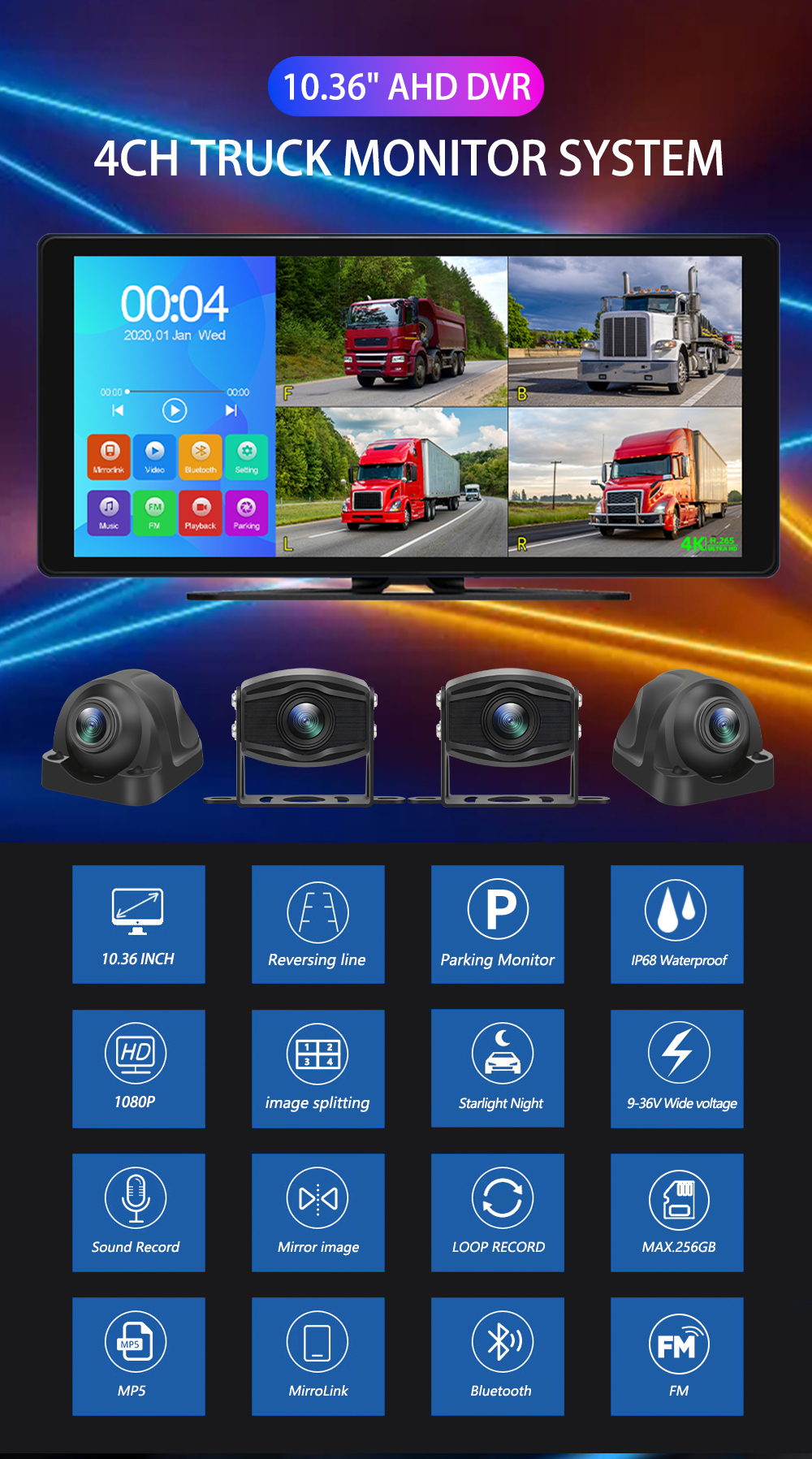

4CH Vehicle Monitor System 1080P AHD Reverse Camera 10.36 inch Touch Screen MP5 FM Bluetooth DVR for Truck/Bus Parking Recorder
NOTE: If you buy the monitor only, please note that the monitor supports AHD 1080P PAL/NTSC and 720P PAL/NTSC cameras, and the cameras and cables are not included! We recommend you buy a complete set. You can choose the starlight camera system or the IR camera system.

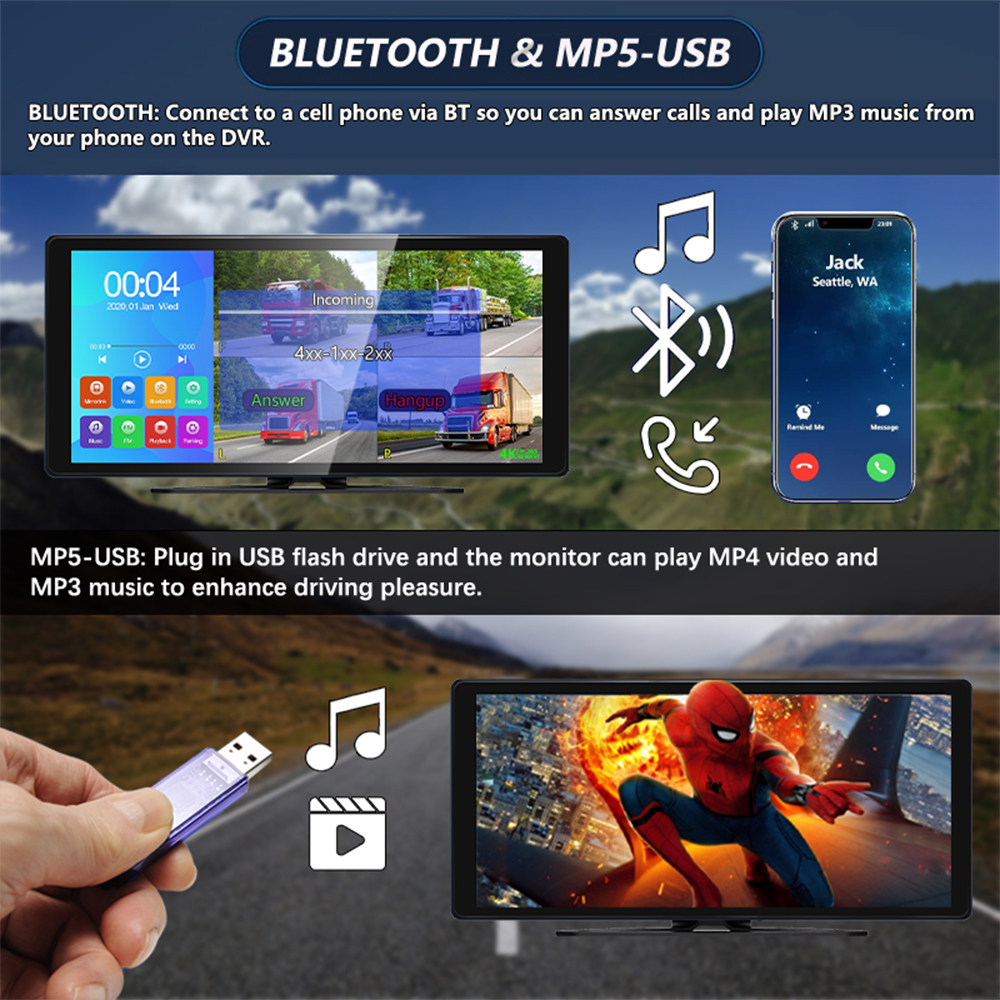

Bluetooth & MP5-USB Function
With Bluetooth function, you can connect to a cell phone via BT so you can answer calls and play MP3 music from your phone on the monitor. With the MP5 function, you can plug in a USB flash drive into the monitor to play MP4 video and MP3 music to enhance driving pleasure.

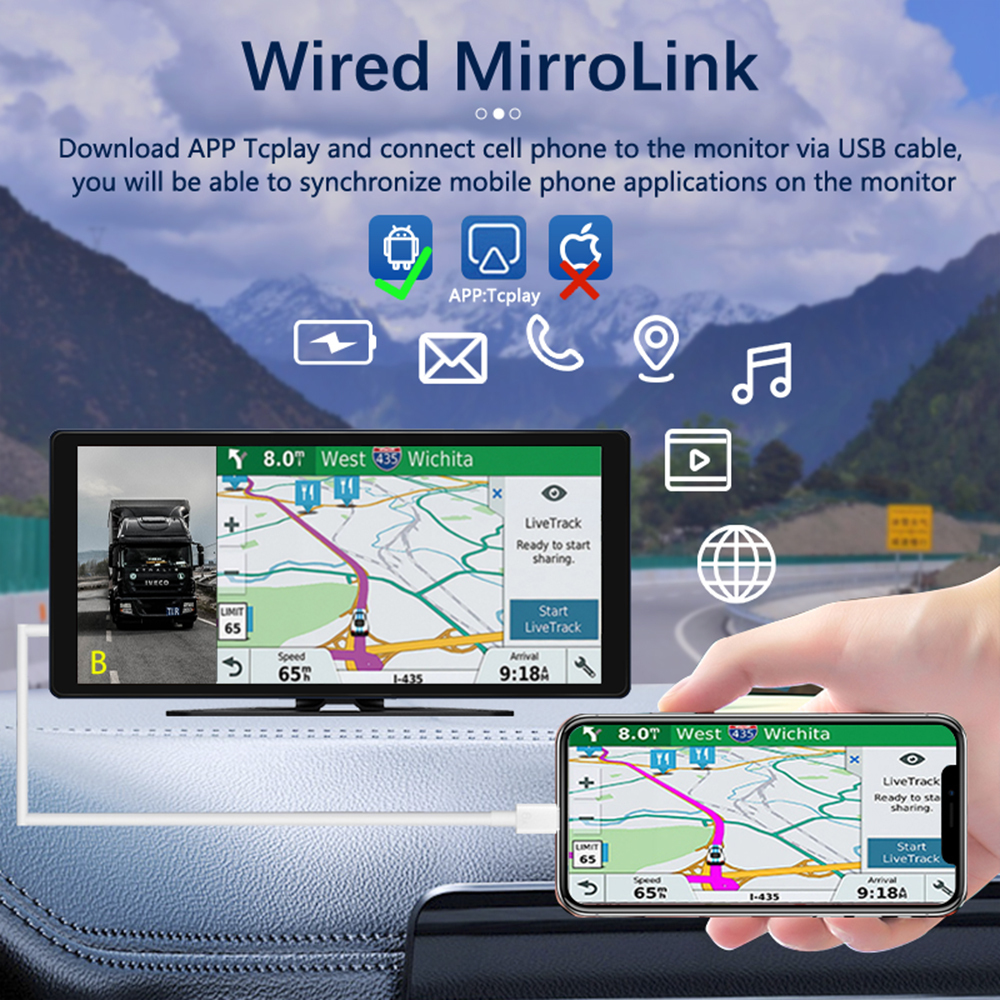

Wired MirrorLink
Download the app and connect the cell phone to the monitor via a USB cable; you will be able to control and synchronize mobile phone applications on the monitor. Enable you to develop more functions such as map navigation, phone charging, playing music and video, calling, messaging, Internet surfing, etc. (Note: The APP is only available for Android device.)
Model | SA-KC55P | |
Display | Size | 10.36 inch |
Resolution | 1600*720 | |
Luminance | 600-nit Brightness IPS | |
Systems |
|
|
Operating system | Embedded Linux | |
Operating language | Traditional and Simplified Chinese, English, Russian, Thai, Korean, Vietnamese, Japanese, German, Spanish, French, Turkish, Italian, Portuguese, and Bulgarian | |
Operation interface | Graphical OSD, support touch/voice control | |
Sound and video | Route number | 4-way |
Video standard | PAL/NTSC | |
Compression standard | H.264 | |
Image resolution | 1080P/720P | |
Playback resolution | 640*480 | |
Video format | ts | |
Video frame rate | 30 frames | |
Packing size per minute | 8.5MB (1 channel) | |
Screen display | Support 1/2/3/4-screen display | |
Horizontal perspective | 120° (1 channel) | |
Noise reduction | 3D | |
Wide dynamic | Digital Wide Dynamic DWDR | |
Night vision | Starlight full-color | |
Sound recordings | The display comes with pickup (it needs to be manually turned on) | |
Image mirroring | Support | |
SD card storage | 8-128G Class 10 or U1 grade TF card | |
Video mode | Loop video/parking video | |
Loop recording time | 2/3/5 minutes | |
Parking video time | 1/3/5/8/12/24 hours | |
Connector | Video interface | 4-way aviation female access |
USB port | 1 USB port for video and music playback | |
trigger interface | 1 way reverse trigger line / 2 way left/right steering trigger line | |
Sound and light alarm interface | / | |
tail line | All-in-one cable | |
Power Connector | 3-core wire (B+ Yellow/ACC Red/B- Black) | |
Extensions | ADAS | / |
BSD | / | |
Pedestrian/oil theft detection | / | |
MP5 | Support | |
Bluetooth | Support | |
FM Launch | Support | |
mobile phone connection | Support | |
carplay | / | |
WIFI | / | |
Other | Power Input | DC 9-36V |
Operating temperature | -20℃+60℃ | |
