Sanan

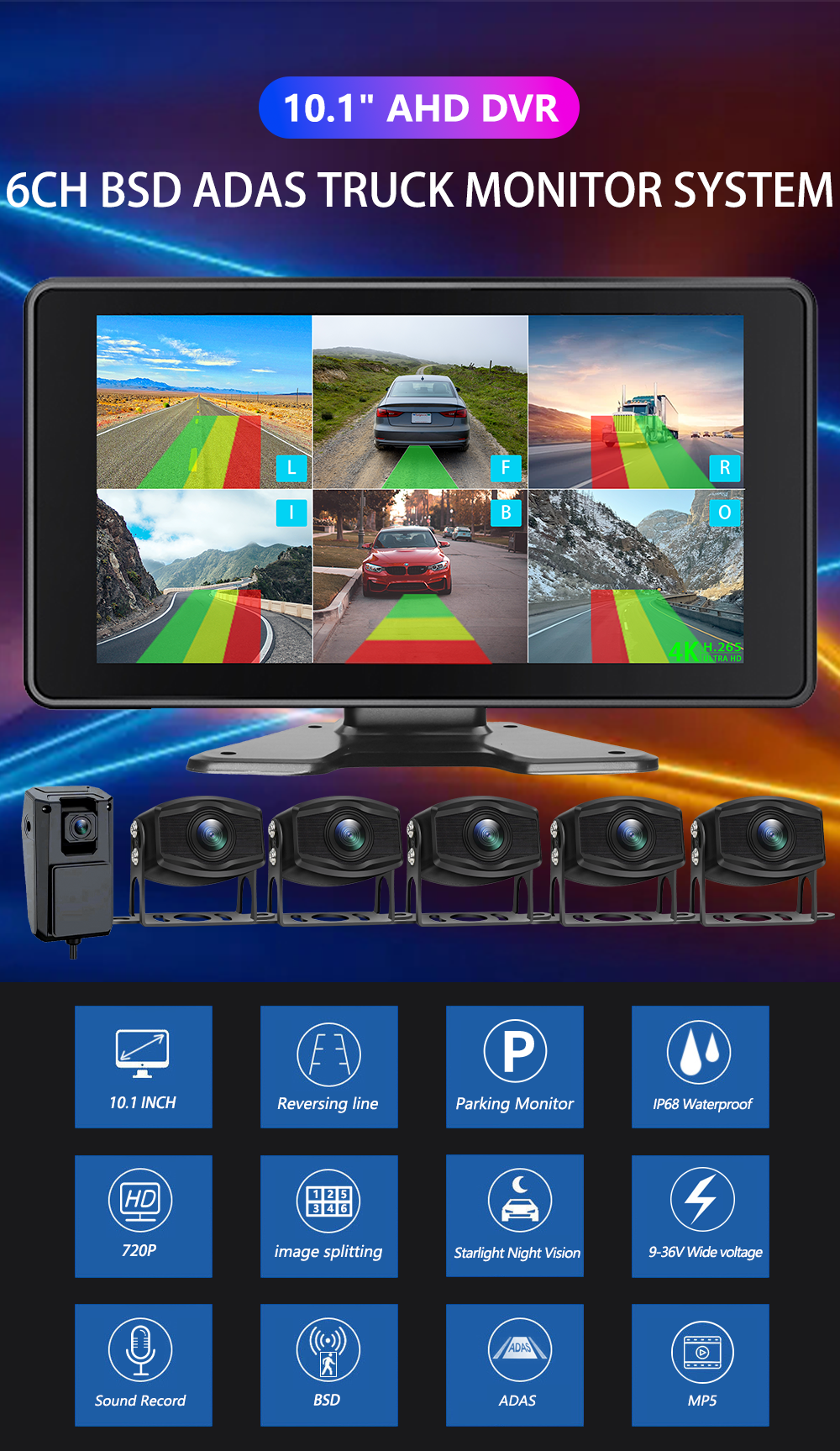

6CH Vehicle ADAS BSD DVR System with 10.1 Inch Touch Monitor
Model | SA-KC06X | |
Display | Size | 10.1-inch |
Resolution | 1024*600 | |
Luminance | 600-nit Brightness IPS | |
Systems |
|
|
Operating system | Embedded linux | |
Operating language | Chinese, English, Japanese, Russian, Thai and Vietnamese | |
Operation interface | Graphic OSD, support touch/voice control | |
Sound and video | Route number | 6 channels |
Video standard | PAL/NTSC | |
Compression standard | H.265 | |
Image resolution | 720P | |
Playback resolution | 1280*720 | |
Video format | ts | |
Video frame rate | 25 frames | |
Packing size per minute | 20MB (1 channel) | |
Screen display | / | |
Horizontal perspective | 120° (1 channel) | |
Noise reduction | 3D | |
Wide dynamic | Digital Wide Dynamic DWDR | |
Night vision | Starlight Full Color | |
Sound recordings | Display comes with pickup (needs to be turned on manually) | |
Image mirroring | Support and flip | |
SD card storage | 16-256G Class10 or U1 grade TF card | |
Video mode | Loop video/parking video | |
Loop recording time | 1/2/3 minutes | |
Parking video time | 8/12/24 hours | |
Connector | Video interface | 6-channel aviation female header access |
USB port | 1 USB port for video and music playback | |
trigger interface | 1-way reverse trigger line/3-way left/right steering trigger line | |
Sound and light alarm interface | / | |
tail line | Split cable | |
Power Connector | 3-core wire (B+Yellow/ACC Red/B-Black) | |
Extensions | ADAS | 1 way adas |
BSD | 3-way BSD | |
Pedestrian/oil theft detection | / | |
MP5 | / | |
Bluetooth | / | |
FM Launch | / | |
mobile phone connection | / | |
carplay | / | |
WIFI | / | |
Other | Power Input | DC 9-36V |
Operating temperature | -20℃+60℃ | |
