Sanan
Key Functional Modules

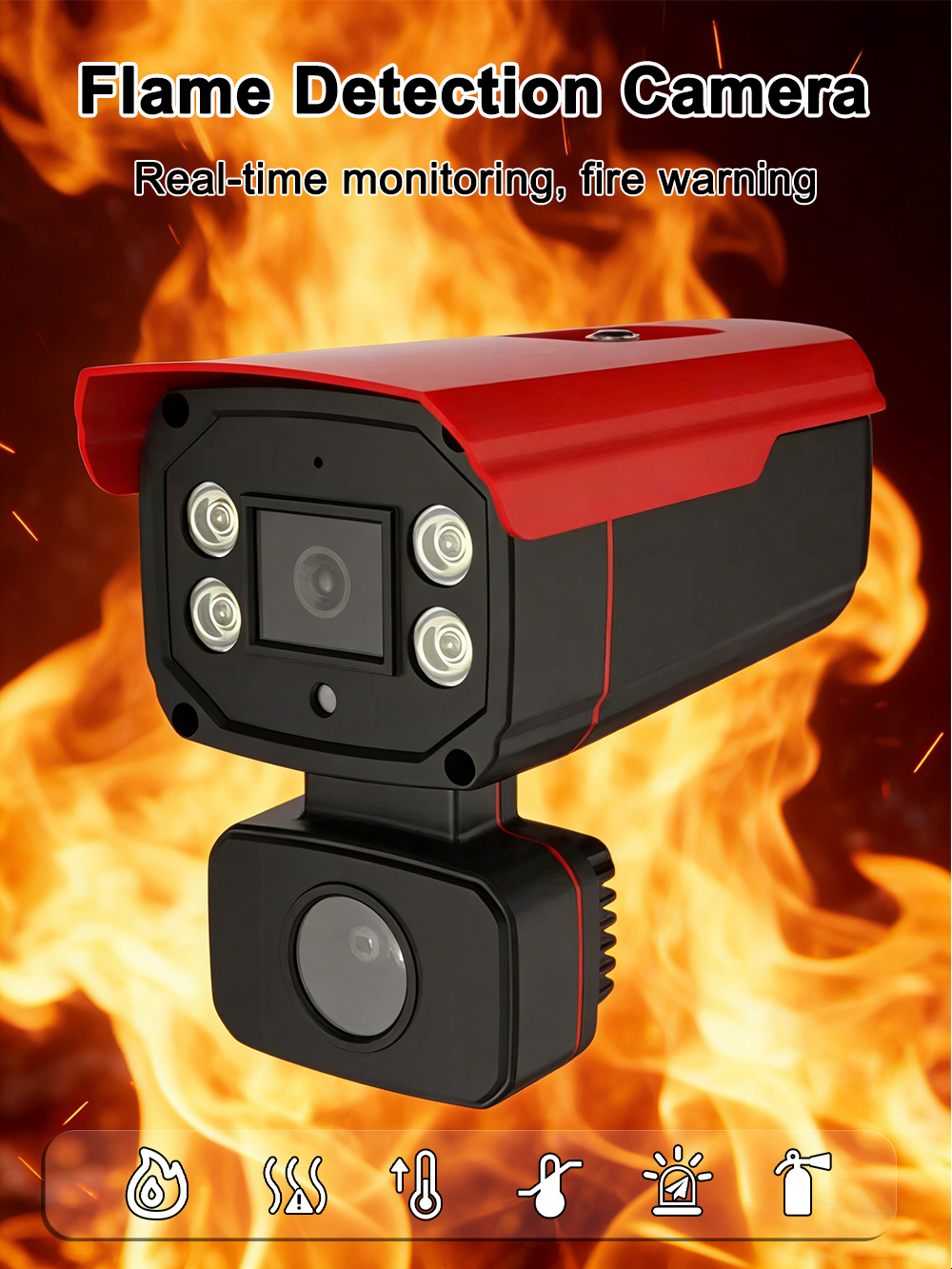

1. Video Monitoring & Flame Recognition
Utilizes deep learning algorithms to detect flame color, shape, and flicker frequency (1–20 Hz) Adjustable sensitivity levels to suit different environments Allows setting restricted zones (Regions of Interest, ROI) for targeted monitoring
Built-in IR-CUT filter switch; automatically activates infrared illumination at night Night vision range up to 10–30 meters (depending on lens specs) Clear black-and-white imaging without red glow
Detects human presence or moving heat sources, enhancing alarm accuracy Filters out non-flame thermal changes to reduce false alarms
2. Audio Functions
Enables on-site sound pickup and environmental listening Real-time two-way voice intercom (full-duplex or half-duplex)
Pre-recorded announcements available (e.g., “No open flames,” “Fire alert, evacuate immediately”) Users can upload or record custom voice messages for local playback or alarm linkage
Enables real-time communication between field personnel and remote users via mobile app or platform Suitable for remote command, notification, or emergency response
3. Alarming & Event Linkage
A physical button on device allows user to manually trigger an alarm in emergencies
Instantly sends alerts to cloud platforms and user apps upon flame detection or manual alarm Alert formats include text, images, short video clips, sound, and visual cues
Triggers actions such as voice broadcast, snapshot, video recording, PTZ movement, relay output activation, or third-party system notifications
4. Storage & Recording
Supports up to 256 GB or more (model dependent) Continuous loop recording and event-triggered recording (e.g., flame, motion) Video encoding formats: H.264 / H.265 for efficient storage
5. Connectivity & Networking
Compliant with IEEE 802.11 b/g/n/ac (2.4 GHz/5 GHz supported)
Compatible with SIM cards from major carriers (China Mobile/Unicom/Telecom, etc.) Ideal for locations without fixed broadband (e.g., construction sites, forests, remote stations)
10/100 Mbps auto-negotiation Optional support for Power over Ethernet (PoE) for simplified cabling
6. Remote Management & Control
Live preview, playback, snapshot, two-way talk, and settings configuration Receives real-time alarm notifications with live view or voice instructions Device addition/deletion, firmware upgrades, and access control supported
The main account can share access with multiple sub-users (family members, guards, admins) Granular permission settings (view-only, operate, configure, etc.)
Compatible with mainstream NVRs and third-party video management platforms Complies with GB28181-2016 national standard for easy integration into public safety projects (e.g., Safe City, Smart Firefighting)

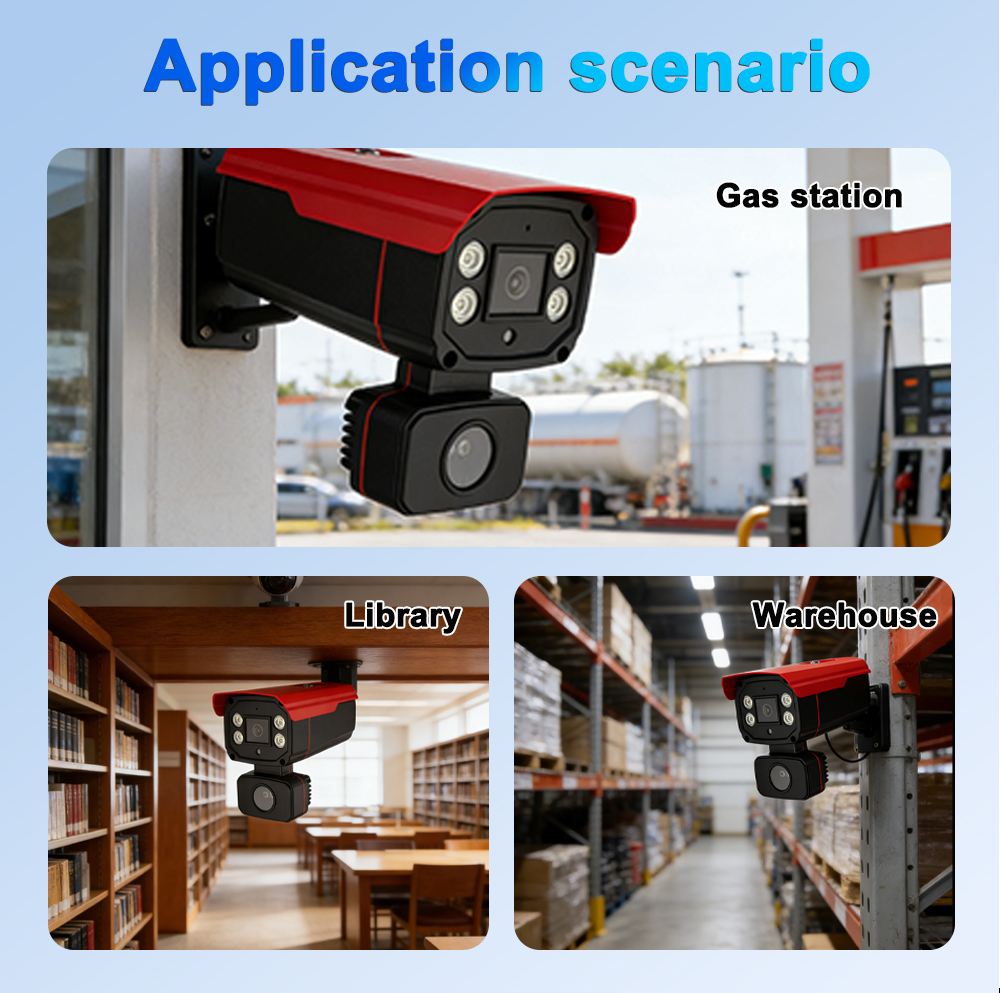

Application Scenarios
1. Industrial parks and hazardous material warehouses 2. Smart construction sites, mines, tunnels 3. Forest fire monitoring stations 4. Commercial complexes and underground garages 5. Electrical rooms and unattended telecom stations 6. Schools, hospitals, nursing homes, and other key public safety locations
