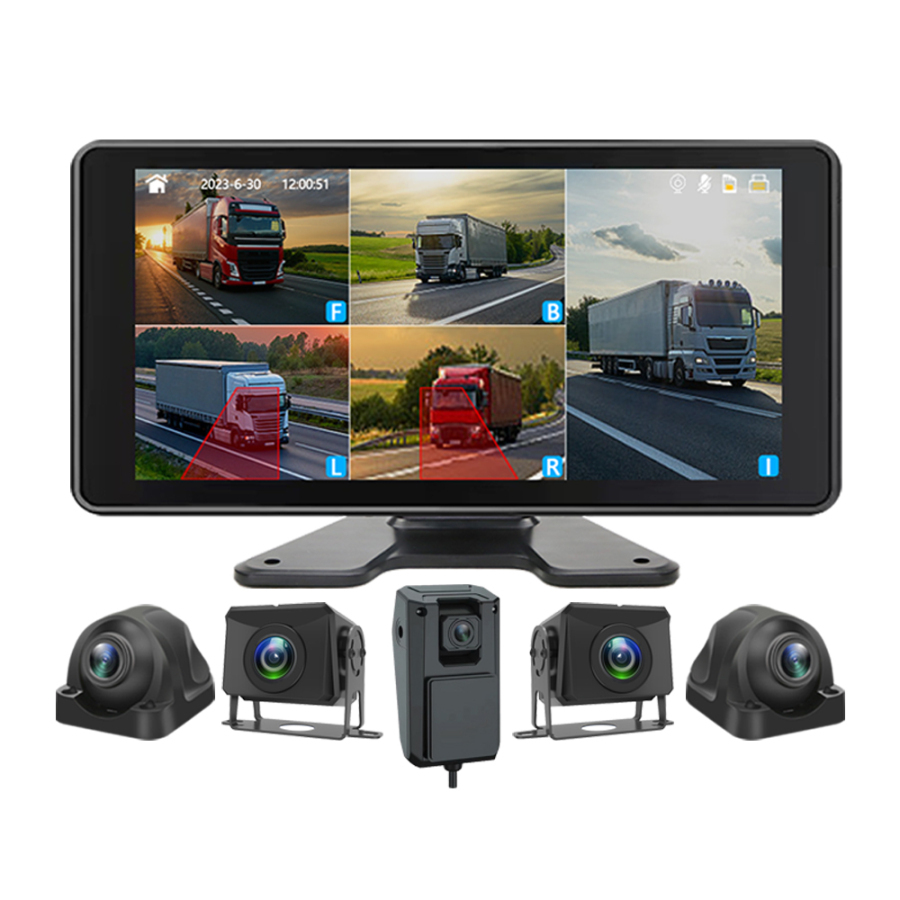

Commercial Vehicle 5CH BSD Monitoring Kit (SA-KCX5PP)
1. Product Overview:
SA-KCX5PP Five-way all-in-one machine (Yi zhi solution): with the BSD blind spot warning function, this product uses high-performance chips, a built-in image AI algorithm, five-way high-definition video recording, intelligent detection of pedestrians (including cyclists, motorcycles, etc.), and accurate identification of various vehicles and animals and reminds the driver to pay attention to blind spot safety when approaching the vehicle. The main chip has passed the strict certification of European CE and American FCC. Please read this manual carefully before use and keep it properly. We hope that this product can meet your needs and serve you for a long time!
2. Interface Description:
Functional interface:

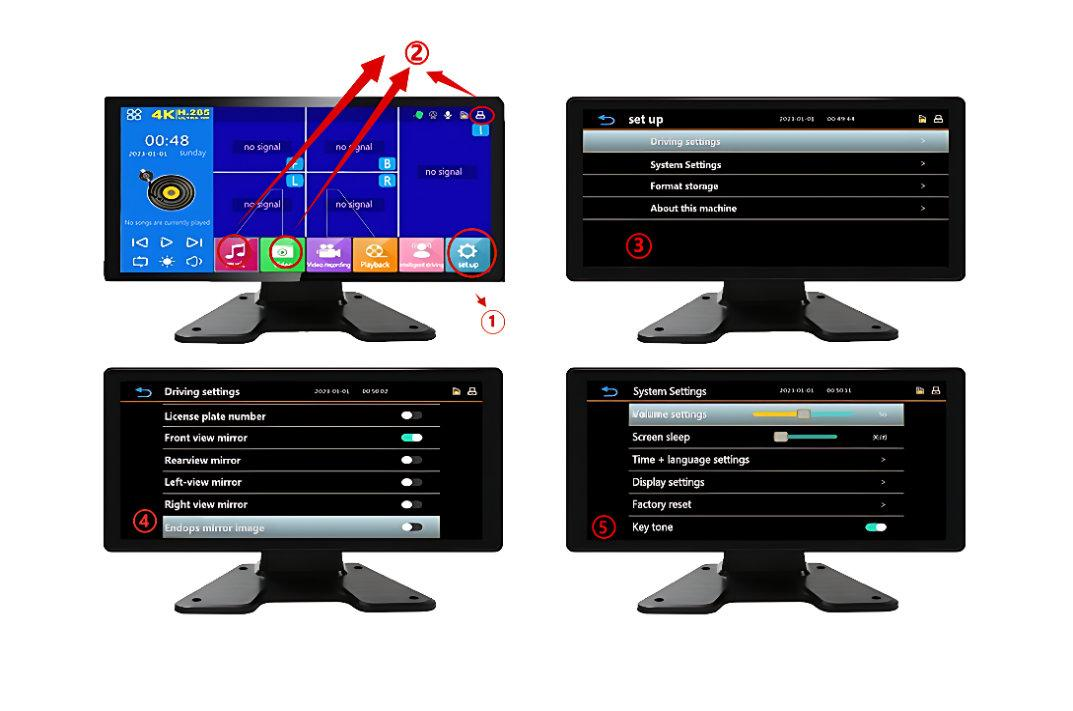

3. Specific UI and setting function description:

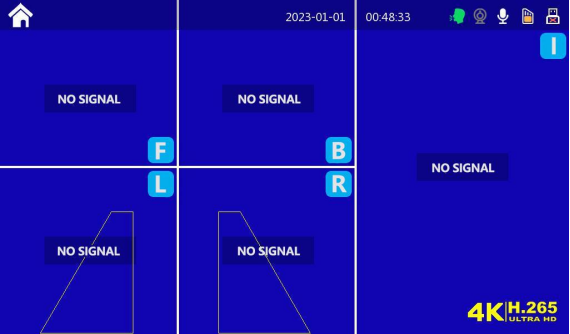

Preview interface:

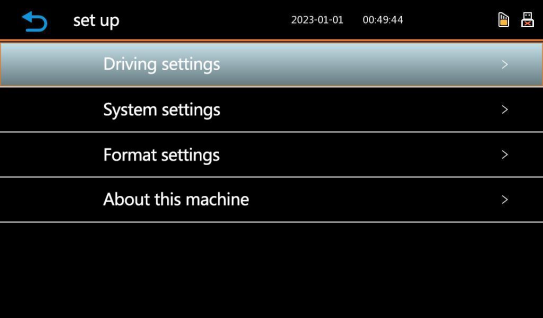

Setting menu interface:
4. Function introduction:

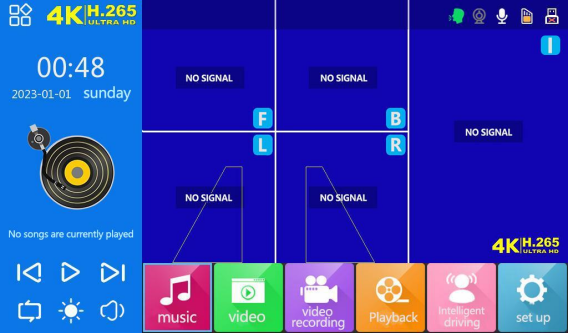

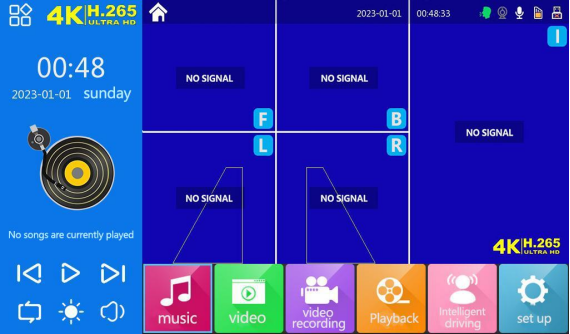

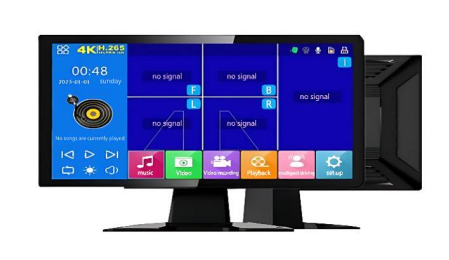

Main interface:
● Left MP3 interface: When playing music, you can quickly operate pause, previous song, and next song; you can set all loops, single loop, and random play; you can quickly set the display backlight brightness (high/medium/low); and you can quickly turn on and off the system sound.
(Note: This interface is only operable when playing or pausing music. After exiting music playback, the buttons on this interface are inoperable
● Music: MP3 function, supports music playback.
● Video: Supports playing videos in MOV, MP4, and TS streaming formats.
● Record: Start and stop recording.
● Playback: Browse the video files recorded before, after, left and right.
● Smart driving: Smart driving is called BSD in English. It relies on the rearview camera to obtain road conditions and vehicle driving information in blind spots. For details, see the 2.3.8 Smart driving description below.
● Settings: You can operate and set driving settings, system settings, voice recognition, formatted storage, about this machine and other functions.

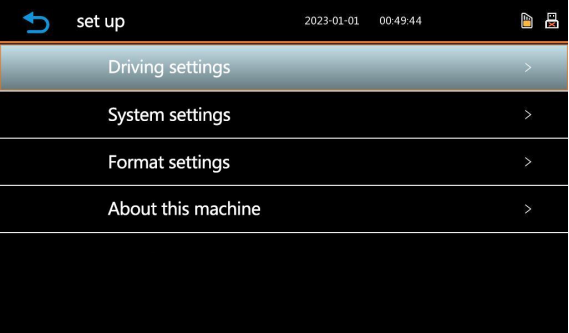

Setup:
● Driving settings
● System settings
● Format storage: NOTE: Formatting will delete all files (including protected files) from the memory card. After formatting, files will not be recoverable; please back up important files before operation.
● About this machine: Version information.

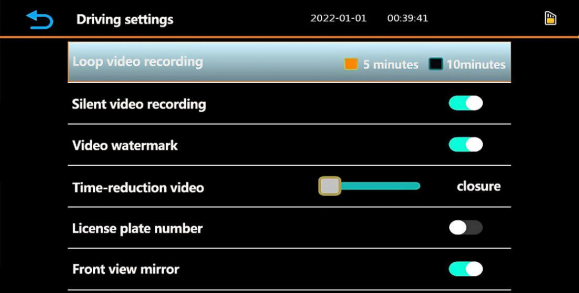

Driving Settings Interface:
● Loop recording: 5 minutes, 10 minutes
● Silent recording: Off, On.
● Video watermark: Off, On.
● Time-lapse recording: Off, 1 hour, 12 hours, 24 hours.
● License plate number: Off, On. (Set to On, enter the license plate settings.)
● Front view mirror: Off, On.
● Rear view mirror: Off, On.
● Left view mirror: Off, On.
● Right view mirror: Off, On.
● Internal mirror: Off, On.
● Standard settings: 1080P, 720P. Note: The machine will automatically reboot when switching settings; restoring factory settings will not reset this option setting.

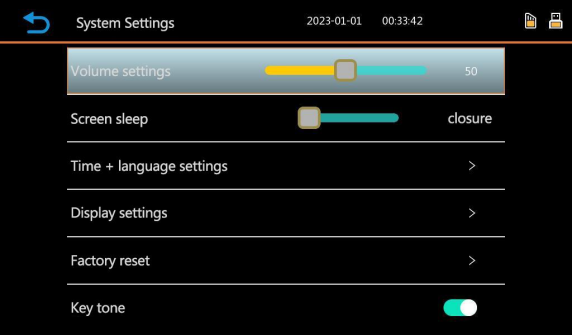

System Settings Interface:
● Volume setting: 0-100 (0 means turning off the sound, and 100 means maximum volume).
Operation: Press OK to enter the volume setting (as below), short press up and down to increase or decrease the volume, and short press again to exit and save the setting.
● Screen sleep: Off, 10s, 30s, 60s.
● Time + Language Settings: ① Language settings: Chinese/English/Korean/Russian.
② Time settings: System time settings.
● Display settings: brightness, contrast, saturation, backlight. (Parameters can be adjusted in the range of 0-100.)
● Restore Defaults: Yes, No. Select 'Yes' to restore system defaults.
● Key tone: Off, On.

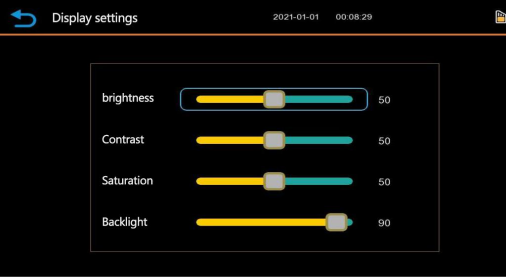

Screen Display Settings:
● Brightness. (The parameter can be adjusted in the range of 0-100, with each adjustment being -5/+5.)
● Contrast. (The parameter can be adjusted in the range of 0-100, with each adjustment being -5/+5.)
● Saturation. (The parameter can be adjusted in the range of 0-100, with each adjustment being -5/+5.)
● Backlight. (The parameter can be adjusted in the range of 0-100; each adjustment is -5/+5.)

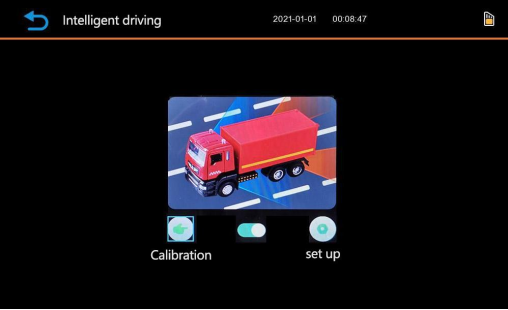

Intelligent Driving Interface:
Special Note: BSD relies on the rear pull-down camera to obtain information about road conditions and vehicle movement in the blind spot.
BSD, that is, blind spot monitoring system, is the system of real-time monitoring of the process of driving on the left and right sides of the blind spot vehicles and prompts to reduce the risk of traffic accidents occurring in the parallel line. Now it is also called Lane Change Assist, or LCA for short. The BSD system will be affected by the light, lane lines and rain and fog and other conditions; the accuracy will have a certain impact. The following content is mainly used to guide the calibration of the car recorder's intelligent driving applications. The following content is mainly used to guide the calibration of the intelligent driving application of the car recorder. It mainly includes the calibration of BSD and the blind spot monitoring area. Before using the BSD, it should be calibrated according to the installation position and shooting angle of the car recorder so as to accurately detect vehicles and lanes. Disclaimer: This system is a safe driving assistance system and cannot be used as a basis for determining the responsibility of traffic safety accidents.

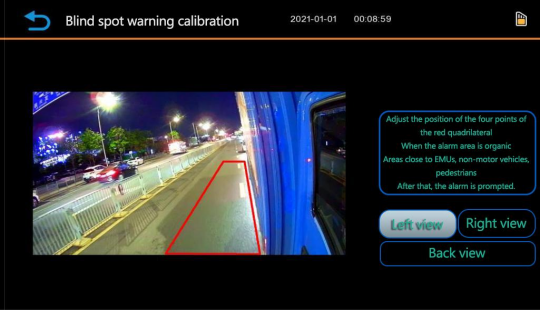

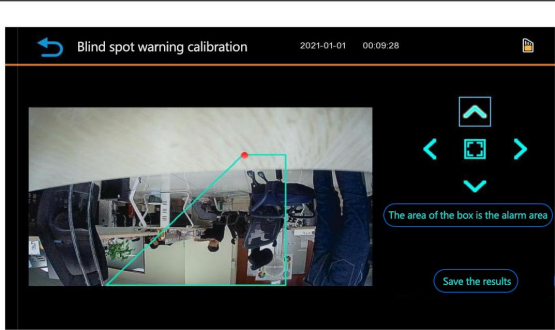

1. For the “Blind Zone Warning Calibration” option, select the left-view, right-view, or rear-view option and enter the alarm area settings.
2. Press the up and down keys to select the direction to be adjusted and the center of the adjustment point switching, and short press [OK button] to adjust the alarm area.

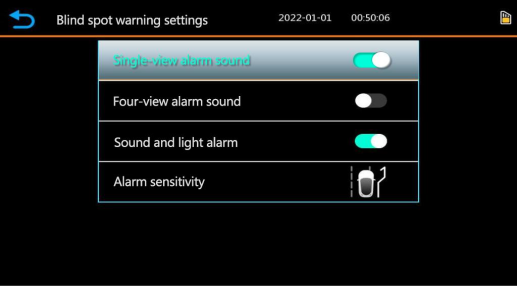

1. Click the "Single-view alarm sound" option and set it on/off; the single-view alarm sound means that when the blind spot warning detects a signal during single-view full-screen display, an alarm sound will be broadcast.
2. Click the "Four-view Alarm Sound" option and set it on/off; the four-view alarm sound means that when the blind spot warning detects a signal in the four-split screen interface, an alarm sound will be broadcast.
3. Click the "Sound and light alarm" option and set it on/off; the sound and light alarm means that when the blind spot warning detects a signal, an alarm sound will be broadcast.
4. Click the "Alarm Sensitivity" option and select the corresponding option (the default value can be used). The alarm sensitivity refers to the sensitivity of the alarm area triggering the alarm.
