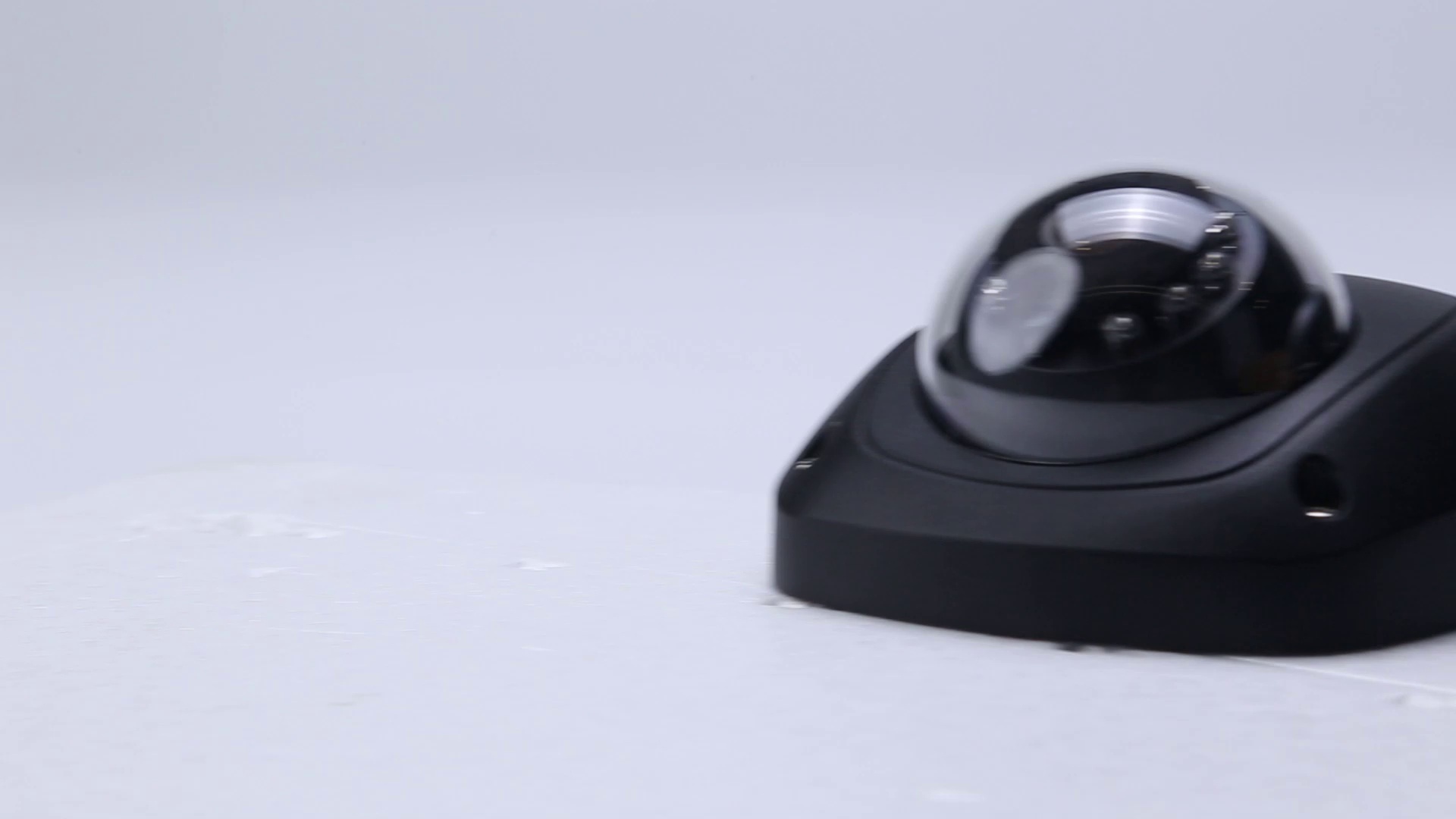

Bus Roof Mount HD Surveillance Camera | AHD 1080P Waterproof Security
HD Vehicle Surveillance Camera for Commercial Fleets
The SANAN SA-MA20M03 is an AHD 1080P infrared surveillance camera designed for compatible vehicle monitoring systems. Its infrared illumination supports low-light video capture, while the aluminum-alloy housing provides a durable camera enclosure.
Designed for integration with compatible mobile DVRs, this camera is suitable for bus and commercial vehicle surveillance projects. Confirm the installation position, connector, and environmental requirements before ordering.
AHD Infrared Camera
Clear Video. Reliable Vehicle Monitoring.
Essential imaging and hardware features for commercial vehicle surveillance applications.
1080P AHD Imaging
2 MP progressive-scan CMOS imaging with AHD output for compatible vehicle recording systems.
Infrared Night Vision
Ten infrared LEDs support low-light monitoring, with a specified IR distance of approximately 10-15 m.
Durable Metal Housing
Aluminum-alloy construction with IP65 protection for the specified installation conditions.
System Integration
Standard aviation-style connector with optional AV interface and audio input subject to configuration.
Designed for Commercial Transportation
Integrate the camera into a compatible vehicle surveillance system to support video monitoring and review.
Public Transit Buses
Support vehicle monitoring and recorded video review when integrated with a compatible onboard recorder.
Coaches & Passenger Transport
Add a video monitoring point to a passenger transport surveillance configuration.
Commercial Fleets
Incorporate video monitoring into compatible fleet vehicle recording and security systems.
Product Specifications
Review the main technical parameters of the SA-MA20M03 before selecting a recorder, cable, and mounting position.
Confirm the final datasheet and selected product configuration with SANAN before purchase.
Ask About This Model →| SA-MA20M03 Technical Specifications | |
|---|---|
| Image Sensor | 1/2.9-inch 2.0 MP CMOS |
| Resolution | 2 MP / 1080P |
| Frame Rate | 1080P @ 25 fps / 30 fps |
| Video Output | AHD |
| TV System | PAL / NTSC |
| Minimum Illumination | 0.01 Lux (F1.2, AGC ON); 0 Lux with IR |
| Infrared LEDs | 10 pcs |
| IR Distance | 10-15 m |
| Lens | 3.6 mm, M12 |
| Signal-to-Noise Ratio | ≥ 50 dB |
| Day / Night | Yes |
| White Balance | Auto / Manual |
| Gain Control | Auto |
| Noise Reduction | DNR |
| Digital WDR | Yes |
| Housing | Aluminum alloy |
| Protection Rating | IP65 |
| Audio | Audio input optional |
| Operating Temperature | -20°C to +70°C |
| Humidity | Up to 95% RH (as specified) |
| Power Supply | DC 12 V / 1 A ±10% |
| Dimensions | 95 × 93 × 46 mm |
| Weight | 320 g |
| Connector | Aviation interface standard; AV optional |
Specifications are based on the published product information. Confirm the latest datasheet and variant before ordering.
Plan Your Vehicle Camera Setup
Verify the video interface, power supply, and mounting conditions before installation.
Connection Checklist
- Confirm the recorder supports AHD 1080P input.
- Verify the DC 12 V power supply and current requirements.
- Confirm connector pinout and cable compatibility.
- Specify whether the optional audio input is required.
- Check cable routing, mounting clearance and sealing.
Before You Order
- Confirm the intended camera mounting location.
- Discuss connector and cable length requirements.
- Verify whether IP65 suits the installation environment.
- Request the latest datasheet and wiring details.
- Confirm the final model configuration with SANAN.
Frequently Asked Questions
Does the camera support 1080P video?
Yes. The published specification lists 2 MP 1080P resolution with AHD video output. The connected recorder must support the corresponding video format.
Can the camera monitor in low-light conditions?
Yes. The camera has ten infrared LEDs and a specified infrared illumination distance of approximately 10-15 m. Actual performance depends on the scene and installation.
Is audio recording supported?
Audio input is optional. Confirm the selected camera variant, wiring and recorder compatibility before ordering.
Can I connect it to any vehicle DVR?
Compatibility is not universal. Check AHD resolution support, connector pinout, power supply and recorder input specifications before connecting the camera.
Can SANAN provide customized configurations?
Contact SANAN with your vehicle type, installation position, interface requirements and order quantity to confirm available configurations.
