Sanan

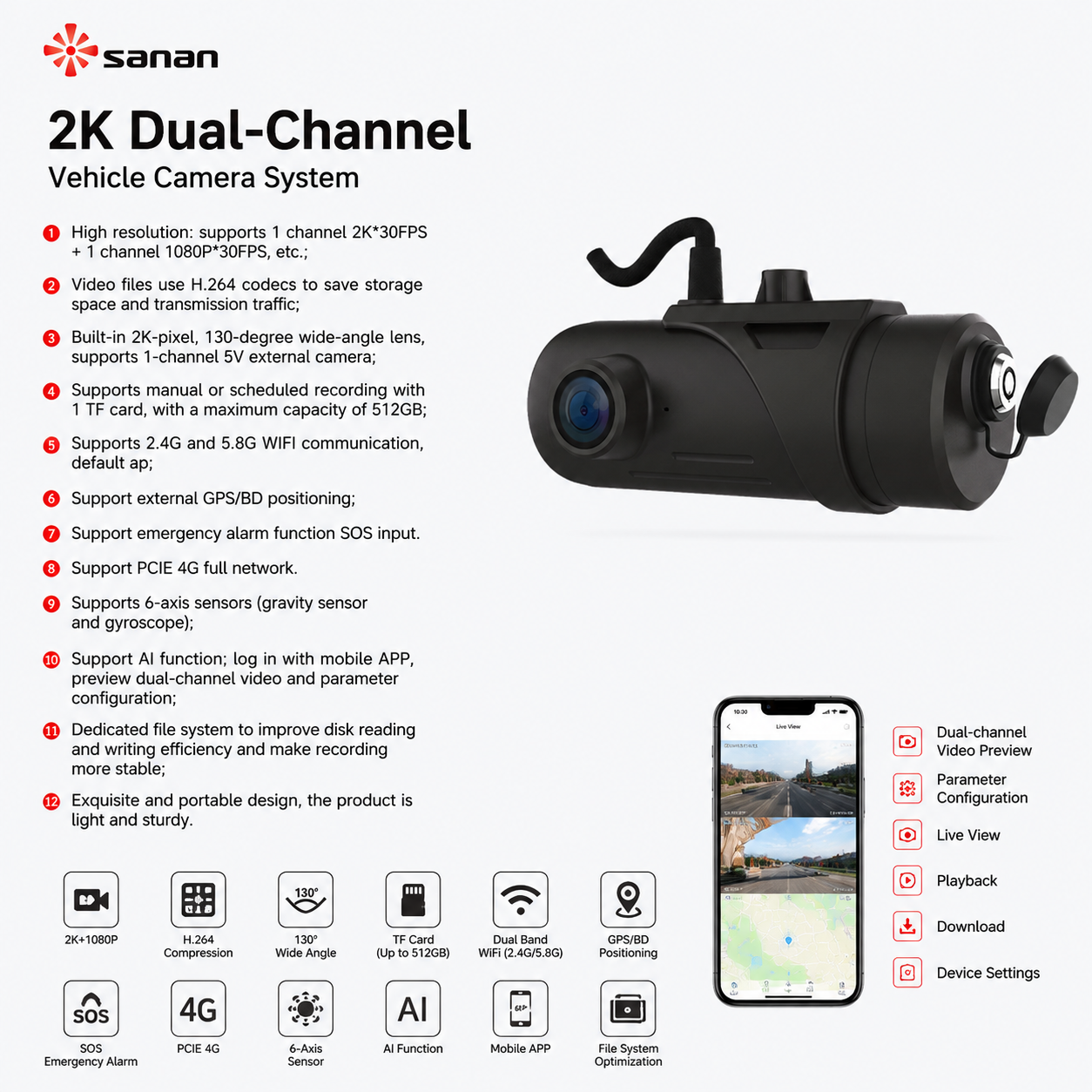

GPS Portable Wifi Dash Camera with 130° Wide Angle Lens
Product features
1. High resolution: supports 1 channel 2K*30FPS + 1 channel 1080P*30FPS, etc.;
2. Video files use H.264 codecs to save storage space and transmission traffic;
3. Built-in 2K-pixel, 130-degree wide-angle lens, supports 1-channel 5V external camera;
4. Supports manual or scheduled recording with 1 TF card, with a maximum capacity of 512GB;
5. Supports 2.4G and 5.8G WIFI communication, default ap;
6. Support external GPS/BD positioning;
7. Support emergency alarm function SOS input.
8. Support PCIE 4G full network.
9. Supports 6-axis sensors (gravity sensor and gyroscope);
10. Support AI function; log in with mobile APP, preview dual-channel video and parameter configuration;
11. Dedicated file system to improve disk reading and writing efficiency and make recording more stable;
12. Exquisite and portable design, the product is light and sturdy.
Product specifications
Type parameter | specification |
Image sensor | CMOS image sensor |
Optical Format | 1/3 inch |
Active Pixels | 2560 (H) × 1440 (V) |
Lens angle/aperture | 130° wide-angle lens |
Video format | H.264/H.265 compression format |
Video resolution | Front: 2560X1440@30fps, rear: 1080P@30fps, supports D1, HD1, CIF, Simultaneous recording of sound and video |
Audio input | Built-in 1 MIC input, (one of them) |
Audio input | supports built-in speaker output |
Expand camera | Expand 1 channel, totaling 2 cameras |
IO input | supports 1 emergency alarm button |
TF card | supports 1 TF card recording (industrial card recommended) |
Storage capacity | 16G/32G/64G/128G/256G/512G |
Sensor | 6-axis sensor |
Positioning module | supports external GPS/Beidou positioning module |
4G | Global 4G frequency bands |
WIFI | 2.4G and 5.8G compatible |
Reset button | supports one-button reset function (restore factory settings) |
Power-off protection | Supercapacitor design supports abnormal power outages and ensures the integrity of video files |
Input voltage | DC:+9V ~ +36V |
Working temperature | -20℃～+70℃ |
Working relative humidity | ≤90% |
