SA-CRSGA485 Industrial Audible and Visual Alarm with LED Strobe Light

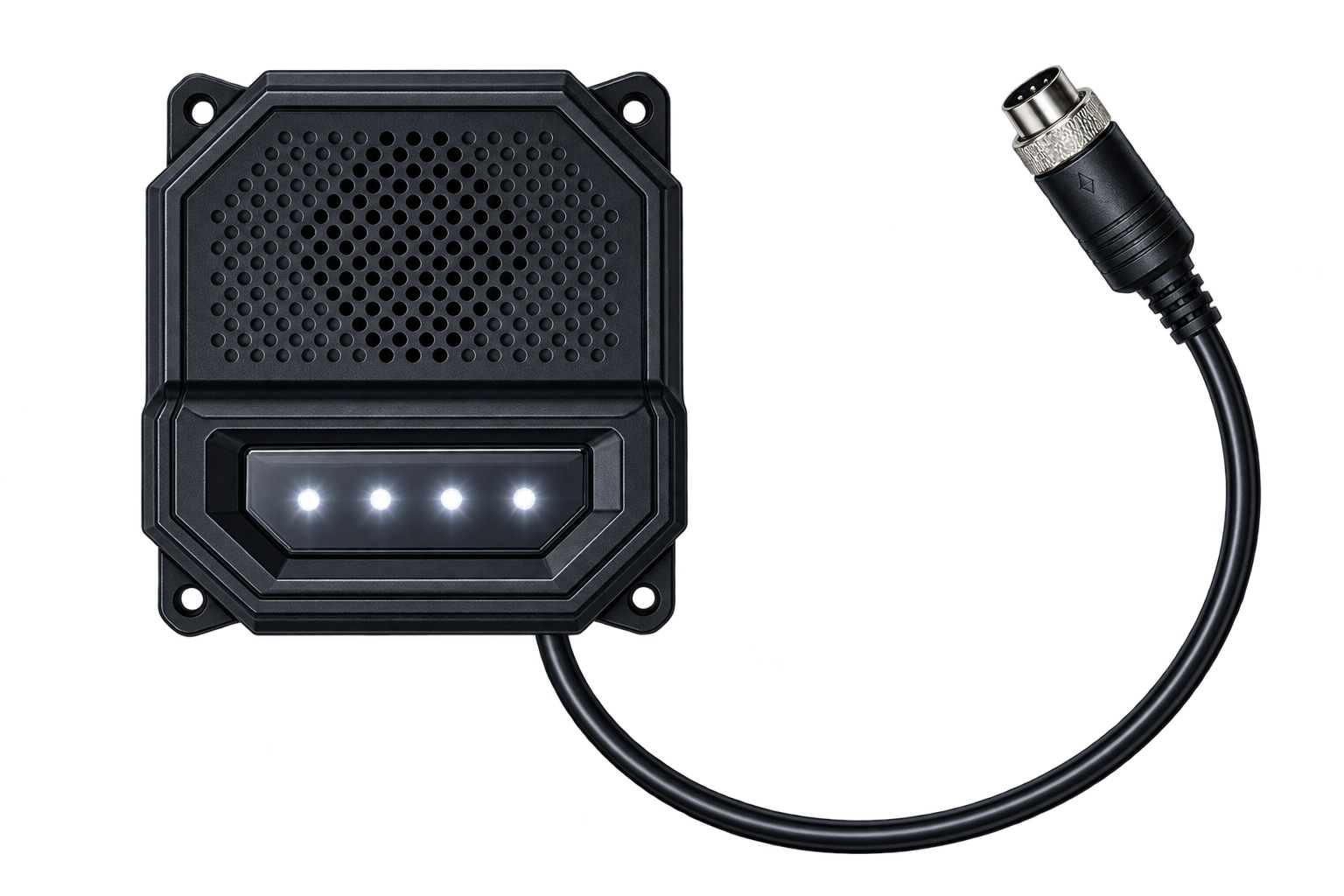

SA-CRSGA485 Audible & Visual Alarm
A multi-scenario audible and visual alarm designed for reliable warning performance in demanding operating environments.
Multi-Scenario Audible & Visual Alarm
The SA-CRSGA485 is a multi-scenario audible and visual alarm that provides simultaneous voice broadcast and strobe light alarm.
The device supports DC 9–36V wide voltage input and integrates a high-brightness LED light source with a 5W high-power loudspeaker.
Its full metal die-cast aluminum housing and IP67 waterproof and dustproof protection make it suitable for harsh and complex environments.
Built for Reliable Alarm Performance
Practical industrial design combined with audible and visual warning functions.
Wide Voltage Input
Supports DC 9–36V wide voltage input for stable operation.
High-Brightness Light Source
Uses a high-quality high-brightness light source designed to effectively reduce light attenuation.
High-Power Speaker
Integrated 5W high-power loudspeaker provides audible alarm output.
IP67 Protection
Waterproof and dustproof protection for harsh and complex environments.
Die-Cast Aluminum Housing
Full metal die-cast aluminum housing with an industrial-style appearance.
RS485 Communication
RS485 communication interface with a default baud rate of 9600bps.
Technical Specifications
Detailed technical parameters of the SA-CRSGA485 audible and visual alarm.
| Model | SA-CRSGA485 |
| Operating Voltage | DC 9V–36V |
| Operating Temperature | -20°C ~ +70°C |
| Operating Current | Static <50mA; Dynamic Max <1A |
| Max Power Consumption | 13W |
| Communication Interface | RS485 |
| Default Baud Rate | 9600bps |
| Alarm Mode | Audible + Visual Combined Alarm |
| Light Mode | LED Strobe Flashing |
| Speaker Power | 5W |
| Light Color | Dual-color: Red / Green |
| External Interface | GX12-4 Female Aviation Plug (Customizable) |
| Standard Cable Length | 0.3m |
| Mounting Holes | 4 Fixing Holes |
| IP Rating | IP67 Waterproof & Dustproof |
| Housing Material | Die-Cast Aluminum Alloy |
| Net Weight | 380g |
| Housing Color | Black; Other Colors Customizable |
