Sanan

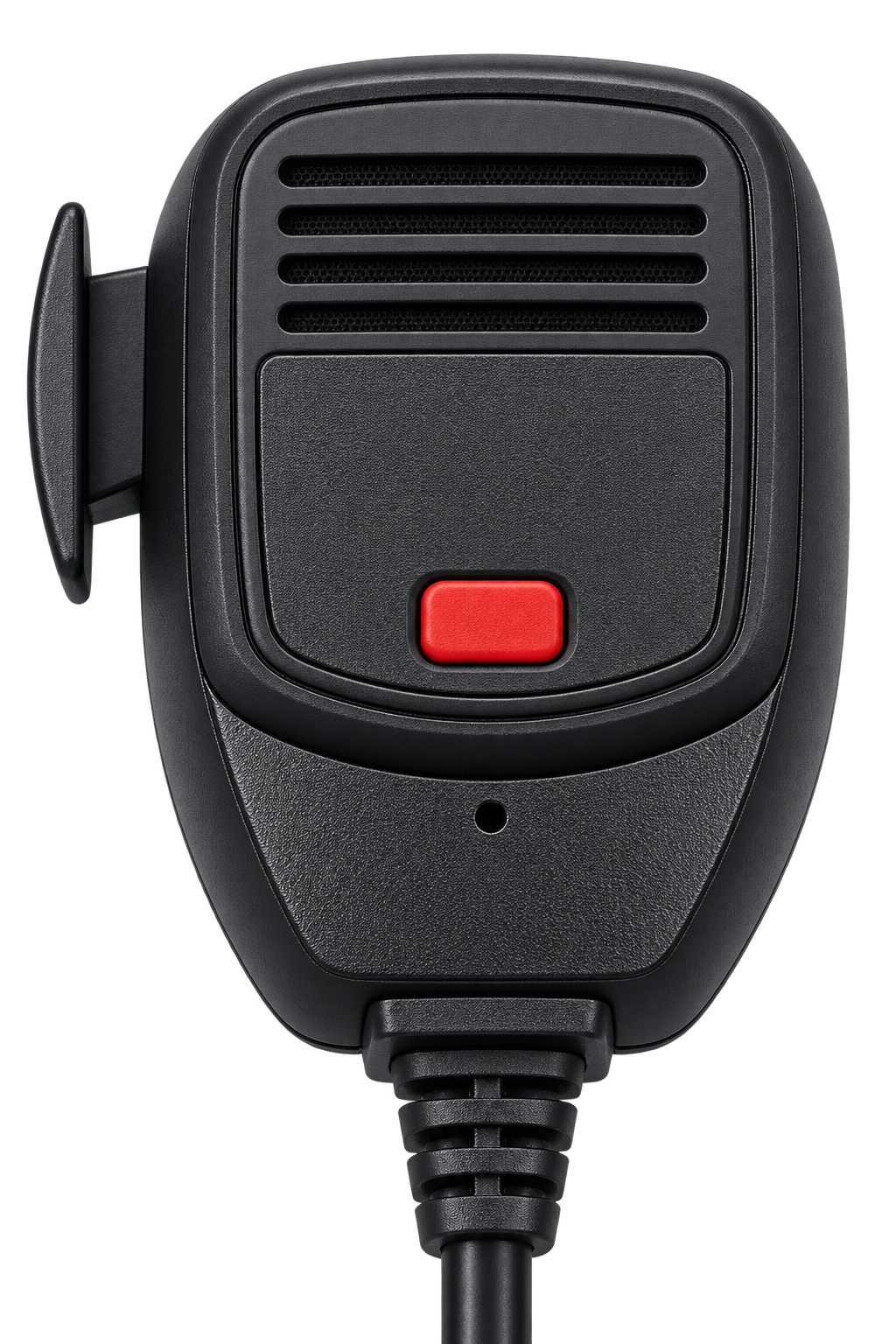

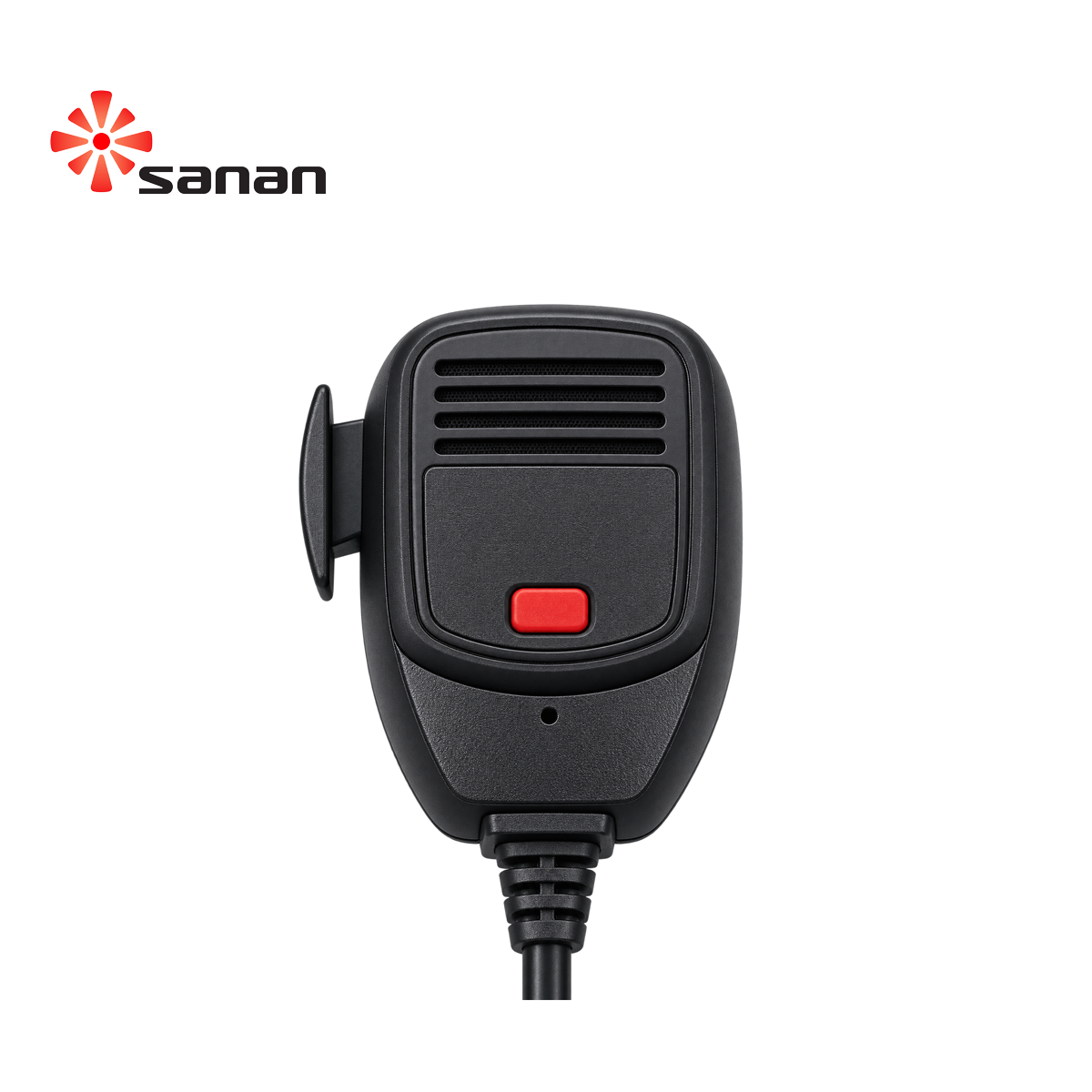

SA-MCH-01 Wireless Vehicle Communication Hand Microphone
SA-MCH-01
Hand Microphone
Wireless hand microphone designed for fast, clear and efficient multi-person communication in vehicle communication and surveillance systems.
Fast & Reliable
Wireless Voice Communication
The SA-MCH-01 hand microphone adopts a wireless transmission solution to provide convenient real-time communication without distance restrictions.
It supports simultaneous multi-person communication, arbitrary group communication and one-call-to-all communication, helping users exchange information quickly and efficiently.
- Wireless transmission solution
- Real-time voice communication
- Multi-person simultaneous conversation
- One-call-to-all communication
- Large user capacity and flexible grouping
Built for Efficient Communication
Practical communication functions designed for reliable and convenient vehicle communication.
High Receiving Sensitivity
Receiving sensitivity up to 0.25μV for reliable wireless signal reception.
Low Operating Current
Designed for efficient operation in vehicle communication systems.
Real-Time Intercom
Supports fast voice delivery for immediate communication.
Simple Operation
Straightforward operation for convenient everyday communication.
Multi-Person Talk
Supports simultaneous conversations and flexible group communication.
Clear Communication
Wherever Teams Operate
The SA-MCH-01 can be integrated into vehicle communication and monitoring systems where operators require fast voice interaction and group communication.
Technical Specifications
Key electrical, audio and mechanical parameters of the SA-MCH-01 hand microphone.
Hand Microphone Pin Definition
Interface definition for system integration.
| Pin | Function | Parameter |
|---|---|---|
| 1 | PWR | DC 5V–12V |
| 2 | GND | GND |
| 3 | MIC | 2V Vpp |
| 4 | SPK | 2V Vpp |
| 5 | KEY | 5V |
Designed for Professional Vehicle Systems
SANAN combines vehicle surveillance, communication and fleet technology into practical system solutions.
Vehicle Technology
Focused on vehicle surveillance, communication and fleet safety products.
System Integration
Products can be integrated into broader vehicle monitoring systems.
OEM / ODM Support
Flexible product and system customization for project requirements.
Global Applications
Solutions designed for commercial vehicles and fleet operations worldwide.
Need a Vehicle Communication Solution?
Talk to SANAN about the SA-MCH-01 hand microphone, system integration, OEM/ODM requirements or customized vehicle communication solutions.
```
