SA-OBD CAN Decoder Box
SA-OBD
CAN Decoder Box

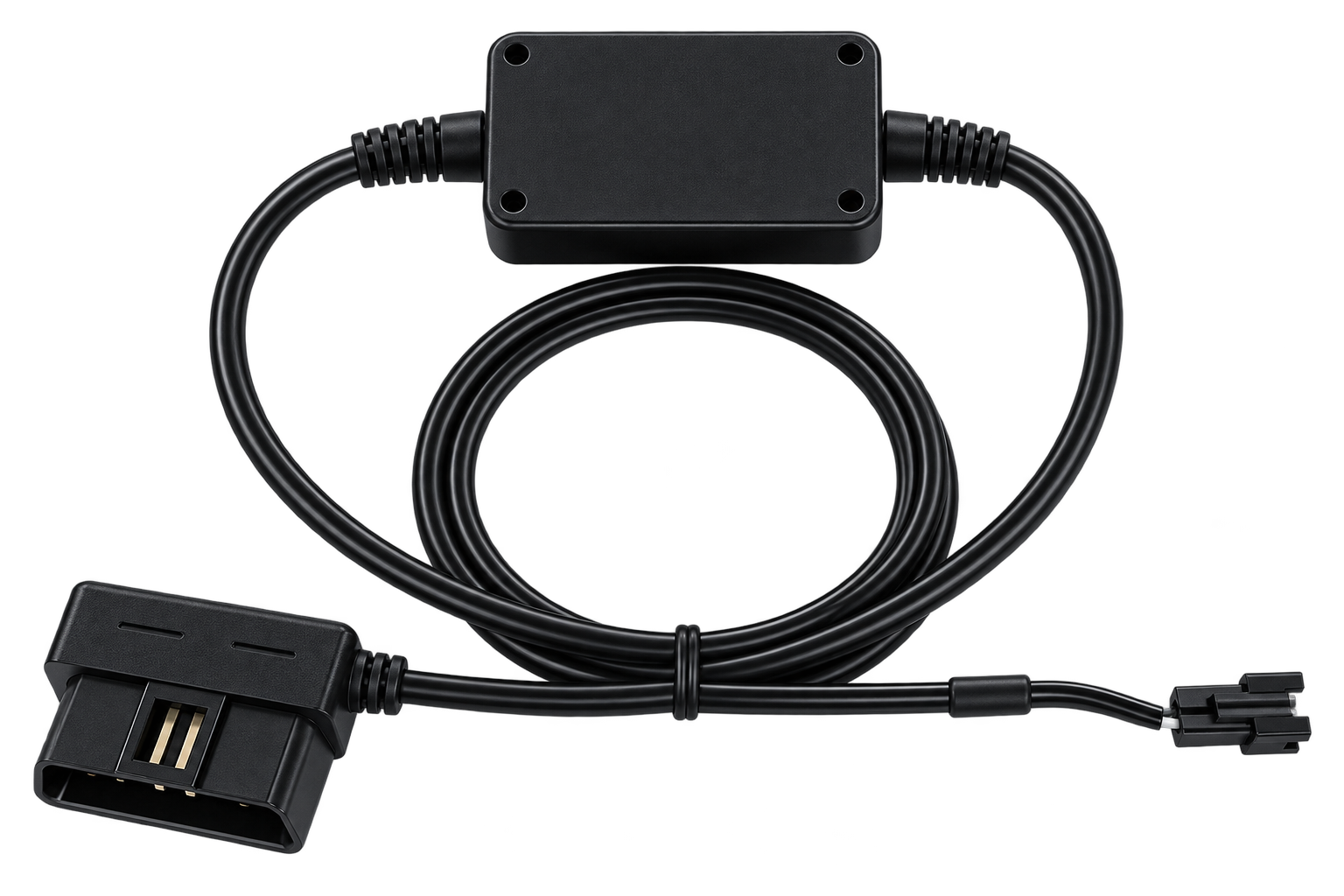

Compact vehicle communication interface for collecting CAN bus and K-Line data and converting vehicle protocol data into UART-format data for connected host equipment.
Connect Vehicle Data With Your Application
A compact CAN decoder interface designed for vehicle diagnostics, data acquisition and secondary application development.
Vehicle Protocol to UART Conversion
The SA-OBD CAN Decoder Box connects to a vehicle through a standard OBD-II connector or dedicated CAN bus connection and collects vehicle bus data. The collected information is converted into UART-format data for connection to host equipment.
- Standard OBD-II automotive communication
- High-speed CAN communication
- K-Line communication
- UART host communication
- Vehicle data acquisition and analysis
- Support for customized gateway interfaces
Supported Vehicle Protocols
Built for Vehicle Data Applications
Designed for vehicle monitoring, diagnostics, data analysis and connected vehicle applications.
CAN Bus Communication
Integrated high-speed CAN physical layer for bidirectional communication with vehicle ECUs.
K-Line Communication
Integrated K-Line interface for diagnostic communication with compatible vehicle systems.
Vehicle Data Analysis
Supports mileage statistics, fuel consumption calculation and driving behavior analysis.
Body Status Acquisition
Can collect vehicle status information including locks, lights, horn, windows and gear position.
Reverse Body Control
Supports reverse control of selected vehicle body functions on compatible vehicle models.
Low-Power Sleep Mode
Sleep mode quiescent current can be as low as 2mA at 12.7V vehicle battery voltage.
From Vehicle Bus to Application
The decoder acts as a communication bridge between vehicle networks and external host equipment.
Flexible for Connected Vehicle Systems
Suitable for vehicle data acquisition and secondary development applications.
Vehicle Diagnostics
Vehicle ECU communication and diagnostic data acquisition.
Fleet Monitoring
Vehicle mileage, fuel consumption and driving behavior data applications.
Vehicle Security
Vehicle anti-theft status monitoring and compatible body control applications.
Secondary Development
Connect vehicle data directly to PCs, tablets and embedded host systems.
SA-OBD Technical Specifications
| Model | SA-OBD / CC420 |
|---|---|
| Power Supply | 9V ~ 36V DC |
| CAN Interface | 1-channel high-speed CAN |
| K-Line Interface | 1-channel K-Line |
| OBD Interface | Standard OBD-II connector |
| Communication Interface | Standard USART, 57600 bps, RS232 / TTL optional |
| Supported Protocols | ISO9141-2, ISO14230 (KWP2000), ISO15765 (DoCAN), proprietary vehicle protocols |
| Sleep Current | 2mA @ 12.7V vehicle battery voltage |
| Operating Temperature | -40°C ~ +85°C |
| Storage Temperature | -45°C ~ +90°C |
| Firmware Upgrade | PC upgrade software via USART |
| Customized Gateway | Available for various vehicle models on demand |

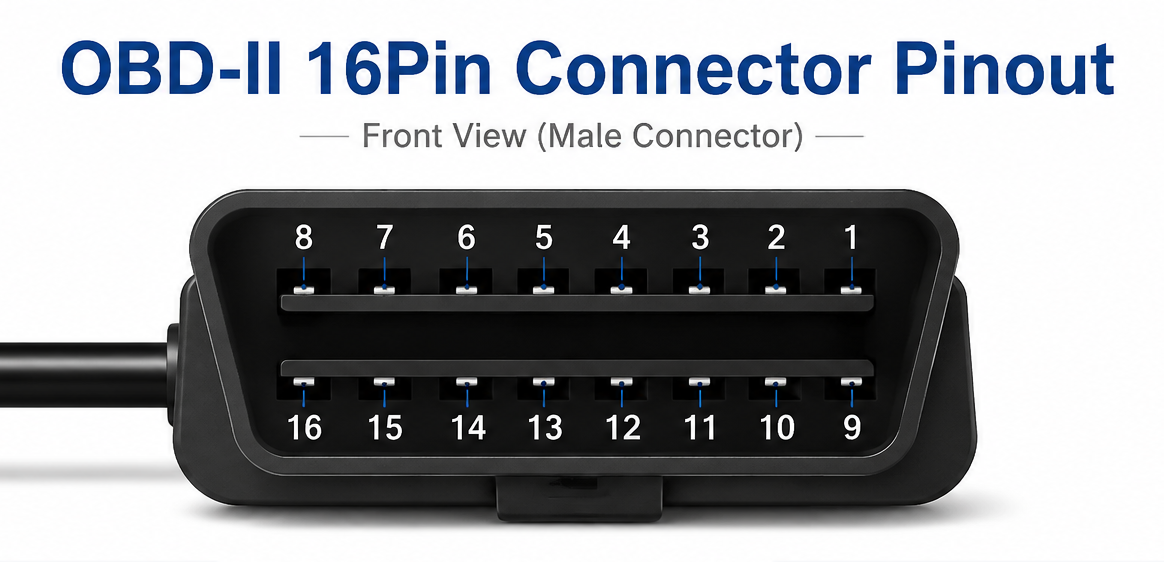

Vehicle Connection Interface
Standard OBD-II pin assignments provide direct access to vehicle power and communication signals.
Simple UART Connection
Connect the decoder to external host equipment using the UART communication interface.
Build Your Vehicle Data Solution
Contact SANAN for vehicle protocol support, customized gateway interfaces and OEM/ODM integration.
